INSTRUMENT CLUSTER INSPECTION

id092200010600

Speedometer Inspection

Using a speedometer tester

Caution

• When only the front or the rear wheels are driven using a speedometer tester, the DSC HU/CM may determine that the vehicle speed signal is in error and the engine cannot be stopped by the normal operation. If the engine cannot be stopped, perform an emergency engine stop operation. (See SERVICE CAUTIONS.)

1. Adjust the tire pressure to the specification. (See WHEEL AND TIRE SPECIFICATION.)

2. Using a speedometer tester, verify that the values are as indicated in the table.

km/h

Speedometer indication (km/h)	Speedometer tester indication (km/h)
20	20.40—25.26
40	40.80—45.46
60	61.20—66.06
80	81.60—86.66
100	102.00—107.76
120	122.40—129.08
140	142.80—150.06
160	163.20—170.46
180	183.60—190.86
200	204.00—211.60
220	224.40—232.52

mph

Speedometer indication (mph)	Speedometer tester indication (mph)
10	10.20—13.20
20	20.40—23.30
30	30.60—33.60
40	40.80—43.90
50	51.00—54.28
60	61.20—64.88
70	71.40—75.56
80	81.60—86.12
90	91.80—96.32
100	102.00—106.52
110	112.20—116.72
120	122.40—127.12
130	132.60—137.64
140	142.80—147.84

• If not as indicated in the table, perform the DTC inspection for the PCM and DSC HU/CM, and inspect the related wiring harnesses. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0)].) (See DTC INSPECTION [DSC HU/CM].)

― If the PCM, DSC HU/CM, and related wiring harnesses are normal, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

Using the M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) Select “DataLogger”.

(2) Select “Modules”.

(3) Select “IC”.

3. Using the simulation function SPEEDOMTR, verify that the values are as indicated in the table.

M-MDS display

Speedometer display

Off

Speedometer needle moves to approx. 0 km/h {0 mph}.

60 km/h

Speedometer needle moves to approx. 61—67 km/h {38—41 mph}.

120 km/h

Speedometer needle moves to approx. 122—130 km/h {75.9—80.7 mph}.

M-MDS display	Speedometer display
Off	Speedometer needle moves to approx. 0 km/h {0 mph}.
60 km/h	Speedometer needle moves to approx. 61—67 km/h {38—41 mph}.
120 km/h	Speedometer needle moves to approx. 122—130 km/h {75.9—80.7 mph}.

• If not as indicated in the table, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

Tachometer Inspection

Caution

• If the engine speed exceeds the allowable range, the engine could be damaged. Therefore, when inspecting the tachometer, do not allow the engine speed to exceed the allowable range indicated on the tachometer.

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) Select “DataLogger”.

(2) Select “Modules”.

(3) Select “IC”.

3. Using the simulation function TACHOMTR, verify that the values are as indicated in the table.

M-MDS display

Tachometer display

Off

Tachometer needle moves to 0 rpm.

3000 RPM

Tachometer needle moves to approx. 3,050 rpm.

6000 RPM

Tachometer needle moves to approx. 6,100 rpm.

M-MDS display	Tachometer display
Off	Tachometer needle moves to 0 rpm.
3000 RPM	Tachometer needle moves to approx. 3,050 rpm.
6000 RPM	Tachometer needle moves to approx. 6,100 rpm.

• If not as indicated in the table, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

LCD Inspection

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) Select “DataLogger”.

(2) Select “Modules”.

(3) Select “IC”.

3. Using the simulation function item LCD_SEG, verify that the LDC displays as shown in the following figure.

• If the LCD display is not as shown in the figure, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

Without multi-information display

amxzzn00001381

With multi-information display

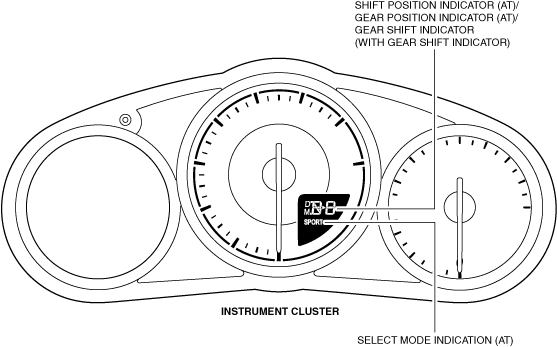

amxzzn00001382

Warning/Indicator Light Illumination Inspection

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) Select “DataLogger”.

(2) Select “Modules”.

(3) Select “IC”.

3. Using the simulation function WL+IL, verify that the warning/indicator lights in the following table are illuminated.

• If any of the warning/indicator lights are not displayed, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

Without multi-information display

amxzzn00001277

×: Applicable

—: Not applicable

No.	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1	Direction indicator/hazard warning indicator lights	—	—	—
2	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	—	×
3	Wrench indicator light	—	—	×
4	Low washer fluid level warning light	×	With headlight cleaner system	—
5	Engine oil warning light	×	—	×
6	Seat belt warning light	—	—	—
7	ABS warning light	×	—	×
8	Master warning light	×	—	×
9	Charging system warning light	×	—	×
10	Air bag/seat belt pre-tensioner system warning light	×	—	×
11	Security indicator light	—	—	×
12	Tire pressure monitoring system warning light	×	With tire pressure monitoring system	×
13	Brake system warning light (red)	×	—	×
14	Headlight high-beam indicator light	—	—	—
15	DSC OFF indicator light	—	—	×
16	LED headlight warning light	×	—	×
17	LDWS OFF indicator light	—	With lane departure warning system (LDWS)	×
18	Active bonnet warning light	×	With active bonnet	×
19	LDWS warning light	×	With lane departure warning system (LDWS) and without flat tire warning light	×
19	Flat tire warning light	×	With flat tire warning light	×
20	Electric vacuum pump warning light (amber)	—	—	×
21	Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)	—	With adjustable speed limiter	—
21	120 km/h warning light	—	With 120 km/h warning light	×
22	Cruise main indicator light (amber)/cruise set indicator light (green)	—	With cruise control system	—
23	Blind spot monitoring (BSM) OFF indicator light	—	With blind spot monitoring (BSM) system	×
24	HBC indicator light (green)/HBC warning light (amber)/Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)	×	With high beam control (HBC) system or adaptive LED headlights	×
25	Rear fog light indicator light	—	With rear fog light	—
25	LDWS warning light	—	With lane departure warning system (LDWS) and flat tire warning light	×
26	Lights-on indicator light	—	—	—
27	Power steering malfunction indicator light	×	—	×
28	TCS/DSC indicator light	×	—	×
29	Check engine light	×	—	×
30	Automatic transmission warning light	×	AT	×
31	KEY warning light (red)/KEY indicator light (green)	×	—	×
32	Door-ajar warning light	—	—	—
33	i-stop warning light (amber)/i-stop indicator light (green)	×	With i-stop system	×
34	Low fuel warning light	×	—	—
35	i-ELOOP indicator light (green)/i-ELOOP warning light (amber)	×	With i-ELOOP	×

With multi-information display

amxzzn00001314

×: Applicable

—: Not applicable

No.	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1	Direction indicator/hazard warning indicator lights	—	—	—
2	ABS warning light	×	—	×
3	Engine oil warning light	×	—	×
4	Security indicator light	—	—	×
5	Charging system warning light	×	—	×
6	Air bag/seat belt pre-tensioner system warning light	×	—	×
7	Seat belt warning light	—	—	—
8	Brake system warning light (red)	×	—	×
9	Headlight high-beam indicator light	—	—	—
10	DSC OFF indicator light	—	—	×
11	Active bonnet warning light	×	With active bonnet	×
12	Flat tire warning light	×	With flat tire warning light	×
13	Electric vacuum pump warning light (amber)	—	—	×
14	120 km/h warning light	—	With 120 km/h warning light	×
15	Blind spot monitoring (BSM) OFF indicator light	—	With blind spot monitoring (BSM) system	×
16	LDWS OFF indicator light	—	With lane departure warning system (LDWS)	×
17	Rear fog light indicator light	—	With rear fog light	—
18	HBC indicator light (green)/HBC warning light (amber)/Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)	×	With high beam control (HBC) system or adaptive LED headlights	×
19	Lights-on indicator light	—	—	—
20	TCS/DSC indicator light	×	—	×
21	Check engine light	×	—	×
22	LED headlight warning light	×	—	×
23	Tire pressure monitoring system warning light	×	With tire pressure monitoring system	×
24	i-stop warning light (amber)/i-stop indicator light (green)	×	With i-stop system	×
25	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	—	×

Alarm Inspection

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) Select “DataLogger”.

(2) Select “Modules”.

(3) Select “IC”.

3. Using the simulation function ALARM, verify that the buzzer sounds.

• If the buzzer does not sound, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
