PARKING SENSOR CONTROL MODULE INSPECTION

id092200023600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Scuff plate (RH) (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(4)  Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(5)  Parking sensor control module (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.)

3.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

4.  Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

•  If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

―  If the system does not operate normally even though the inspection items are normal, replace the parking sensor control module.

Terminal Voltage Table (Reference)

am2zzw00011509

Terminal	Signal name	Connected to	Measurement condition		Voltage (V)	Inspection item(s)
A	GND	Body ground	Under any condition		1.0 or less	•  Body ground •  Related wiring harness
B	—	—	—		—	—
C	—	—	—		—	—
D	—	—	—		—	—
E	Ultrasonic sensor	Corner ultrasonic sensor (LH)	Wave pattern (See Inspection Using an Oscilloscope (reference).)			•  Corner ultrasonic sensor (LH) •  Related wiring harness
F	—	—	—		—	—
G	Ultrasonic sensor	Corner ultrasonic sensor (RH)	Wave pattern (See Inspection Using an Oscilloscope (reference).)			•  Corner ultrasonic sensor (RH) •  Related wiring harness
H	Ultrasonic sensor GND	•  Ultrasonic sensor •  Corner ultrasonic sensor	Under any condition		1.0 or less	•  Ultrasonic sensor •  Corner ultrasonic sensor •  Related wiring harness
I	Ultrasonic sensor	Ultrasonic sensor (LH)	Wave pattern (See Inspection Using an Oscilloscope (reference).)			•  Ultrasonic sensor (LH) •  Related wiring harness
J	—	—	—		—	—
K	Ultrasonic sensor	Ultrasonic sensor (RH)	Wave pattern (See Inspection Using an Oscilloscope (reference).)			•  Ultrasonic sensor (RH) •  Related wiring harness
L	Speed	Instrument cluster	Determination using terminal voltage inspection is not possible.
M	—	—	—		—	—
N	Reverse	Electrical supply unit (ESU)	Ignition switched ON (engine off or on)		B+	•  Electrical supply unit (ESU) •  Related wiring harness
			Ignition switched off or ACC		1.0 or less
O	—	—	—		—	—
P	—	—	—		—	—
Q	—	—	—		—	—
R	Parking sensor buzzer control	Parking sensor buzzer	Ignition switched ON (engine off or on)	Buzzer sounding	1.0 or less	•  Parking sensor buzzer •  Related wiring harness
				Buzzer stopped	B+
S	—	—	—		—	—
T	Parking sensor buzzer power supply	Parking sensor buzzer	Ignition switched ON (engine off or on)		B+	•  Parking sensor buzzer •  Related wiring harness
			Ignition switched off or ACC		1.0 or less
U	—	—	—		—	—
V	—	—	—		—	—
W	IG1	IG1 relay	Ignition switched ON (engine off or on)		B+	•  C/U IG1 15A fuse •  IG1 relay •  Related wiring harness
			Ignition switched off or ACC		1.0 or less
X	—	—	—		—	—

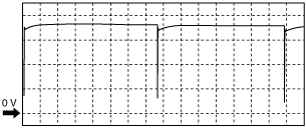

Inspection Using an Oscilloscope (reference)

Test condition			Terminal
Ignition switch	Selector lever position (AT)/shift lever position (MT)	Vehicle speed	Corner ultrasonic sensor (LH)	Ultrasonic sensor (LH)	Ultrasonic sensor (RH)	Corner ultrasonic sensor (RH)
ON (engine off or on)	AT •  R position MT •  Reverse position	0—15 km/h {0—9.3 mph} or less	E—H	I—H	K—H	G—H

―  2 V/DIV (Y), 20 ms/DIV (X), DC range

am6zzw00006971
