1. Disassemble in the order indicated in the table.
|
1
|
Top cover
|
|
2
|
Change frame
|
|
3
|
Baffle plate
|
|
4
|
5th/6th shift rod
|
|
5
|
5th/6th shift fork
|
|
6
|
Change bush
|
|
7
|
Reverse shift rod
(See Shift Rod Disassembly Note.)
|
|
8
|
Detent ball, spring seat, spring
|
|
9
|
Interlock pin
|
|
10
|
1st/2nd shift rod
(See Shift Rod Disassembly Note.)
|
|
11
|
Detent ball, spring seat, spring
|
|
12
|
1st/2nd shift fork
|
|
13
|
Interlock pin
|
|
14
|
Interlock pin
|
|
15
|
3rd/4th shift rod
(See Shift Rod Disassembly Note.)
|
|
16
|
Detent ball, spring seat, spring
|
|
17
|
Stopper block
|
|
18
|
Interlock pin
|
|
19
|
Interlock pin
|
|
20
|
Shift gate
|
|
21
|
Change bush
|
|
22
|
Crank lever
|
|
23
|
Stopper block
|
|
24
|
Detent ball, spring seat, spring
|
|
25
|
5th/6th shift rod
(See Shift Rod Disassembly Note.)
|
|
26
|
5th/6th shift rod end
|
|
27
|
Reverse Shift rod end
|
1. Set the change frame in the vise as shown in the figure.

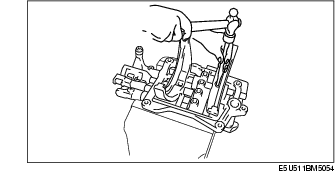

2. Remove the spring pins from each of the shift rods using a pin punch.
3. Place the shift mechanism in the neutral position.

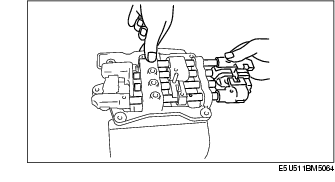

4. Pull out the shift rods from the change frame.
