REAR TRAILING LINK (LOWER) REMOVAL/INSTALLATION

id021400802900

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT.)

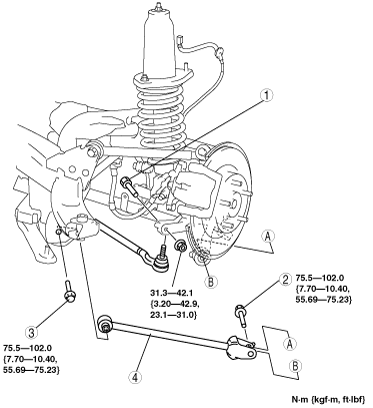

e5u214si9001

1	Toe control link outer bolt
2	Rear trailing link (lower) outer bolt
3	Rear trailing link (lower) inner bolt
4	Rear trailing link (lower)
