ACTIVE BONNET ACTUATOR REMOVAL/INSTALLATION

id081300000600

Warning

•  Handling the active bonnet actuator improperly can cause it to accidentally operate, which could lead to serious injury. Read the service warnings and cautions before handling the active bonnet actuator. (See ACTIVE BONNET SERVICE WARNINGS.) (See ACTIVE BONNET SERVICE CAUTIONS.)

•  After the active bonnet has deployed, always newly replace the parts indicated in the active bonnet service warnings in the section dealing with the active bonnet. If the vehicle is driven without part replacement, the active bonnet may not deploy correctly. (See ACTIVE BONNET SERVICE WARNINGS.)

1.  Switch the ignition to LOCK.

2.  Remove the battery cover.

3.  Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4.  Active bonnet actuator connector disconnection.

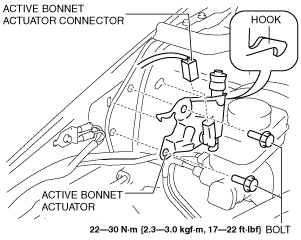

amxzzw00002672

Caution

•  When connecting the active bonnet actuator connector, verify that it is connected securely.

amxzzw00002673

5.  Remove the bolts.

6.  Remove the active bonnet actuator.

7.  Install in the reverse order of removal.

8.  Switch the ignition ON.

9.  Verify that the active bonnet warning light is illuminated for approx. 6 s and then remains turned off.

•  If the active bonnet warning light does not operate correctly, refer to the “ON-BOARD DIAGNOSTIC SYSTEM [ACTIVE BONNET]”. (See FLOWCHART [ACTIVE BONNET].)

Note

•  If the active bonnet warning light is illuminated again after 2 s from being turned off, there is a malfunction in the system.
