DASHBOARD DISASSEMBLY/ASSEMBLY

id091700453600

1.  Remove the following parts:

(1)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

(3)  Center speaker cover (See CENTER SPEAKER REMOVAL/INSTALLATION.)

(4)  Center speaker (vehicles with Bose^®) (See CENTER SPEAKER REMOVAL/INSTALLATION.)

(5)  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

3.  Assemble in the reverse order of disassembly.

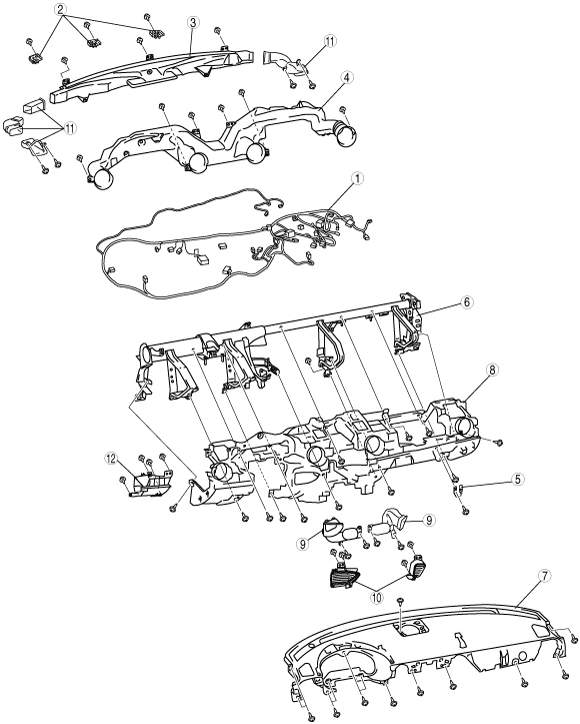

amxuuw00000716

1	Dashboard wiring harness
2	Pin
3	Defroster duct
4	Center duct
5	Striker
6	Dashboard member
7	Dashboard panel
8	Dashboard lower panel
9	Shower duct
10	Lower ventilator grille
11	Side demister nozzle
12	Switch panel
