FLASHER CONTROL MODULE INSPECTION

id091800851000

1.  Remove the flasher control module with the connector connected. (See FLASHER CONTROL MODULE REMOVAL/INSTALLATION.)

2.  Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

•  If the voltage or continuity is not as specified in the Terminal Voltage Table, inspect the parts under “Inspection item (s)”.
―  If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the flasher control module.


Terminal Voltage Table (Reference)

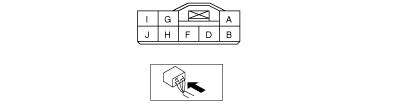

amxzzw00001094

Terminal

Signal name

Connected to

Measured condition

Voltage (V)/Continuity

Inspection item(s)
A
Power supply
HAZARD 10 A fuse
Under any condition
B+
•  HAZARD 10 A fuse
•  Related wiring harnesses
D
Flasher control module output
Turn light (LH)
Turn light switch (LH) is on.
Turn light (LH) flashes.
Alternates between 1.0 or less and B+
•  Turn light (LH)
•  Related wiring harnesses
Hazard warning switch is on.
Except above
1.0 or less
F
GND
Body ground
Under any condition
1.0 or less
•  GND
G
Flasher control module output
Turn light (RH)
Turn light switch (RH) is on.
Turn light (RH) flashes.
Alternates between 1.0 or less and B+
•  Turn light (RH)
•  Related wiring harnesses
Hazard warning switch is on.
Except above
1.0 or less
H
Hazard warning switch input
Hazard warning switch
Hazard warning switch is on.
1.0 or less
•  Hazard warning switch
•  Related wiring harnesses
Hazard warning switch is off.
B+
I
Turn switch (RH) input
Turn switch
Turn the ignition switch to the ON position.
Turn switch (RH) is on.
B+
•  Turn switch
•  Related wiring harnesses
Except above
1.0 or less
J
Turn switch (LH) input
Turn switch
Turn the ignition switch to the ON position.
Turn switch (LH) is on.
B+
•  Turn switch
•  Related wiring harnesses
Except above
1.0 or less
