FUEL SYSTEM LOCATION INDEX [MZ-CD 1.4 DI Turbo]

id0114z1800100

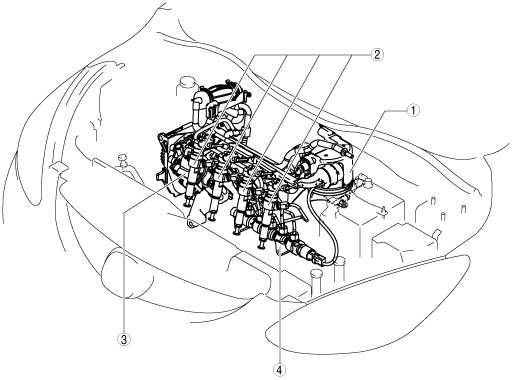

Engine Compartment Side

am2zzw00002745

1	Fuel filter (See FUEL FILTER REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
2	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See FUEL INJECTOR INSPECTION [MZ-CD 1.4 DI Turbo].)
3	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
4	Common rail (See COMMON RAIL REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See COMMON RAIL INSPECTION [MZ-CD 1.4 DI Turbo].)

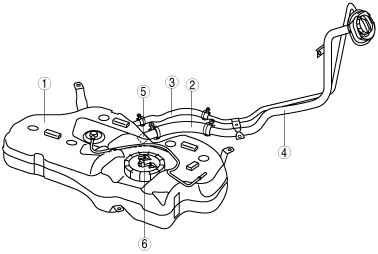

Fuel Tank Side

am2zzw00002746

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See FUEL TANK INSPECTION [MZ-CD 1.4 DI Turbo].)
2	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
3	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
4	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
5	Nonreturn valve (See NONRETURN VALVE INSPECTION [MZ-CD 1.4 DI Turbo].)
6	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See FUEL GAUGE SENDER UNIT INSPECTION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)
