MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R]
id0516b3800200
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [ZJ, ZY].)
2. Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [ZJ, ZY].)
3. Remove the tunnel member. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)
4. Remove the middle pipe or presilencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)
5. Remove the insulator No.1. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)
6. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
7. Remove the shift lever knob as shown in the figure.
am2zzw00001496
|
8. Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
9. Remove the keyless antenna (vehicle interior, front). (vehicles with advanced keyless and start system) (See KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
10. Remove in the order indicated in the table.
11. Install in the reverse order of removal.
12. After installation, verify that the shift lever can be shifted smoothly into each position.

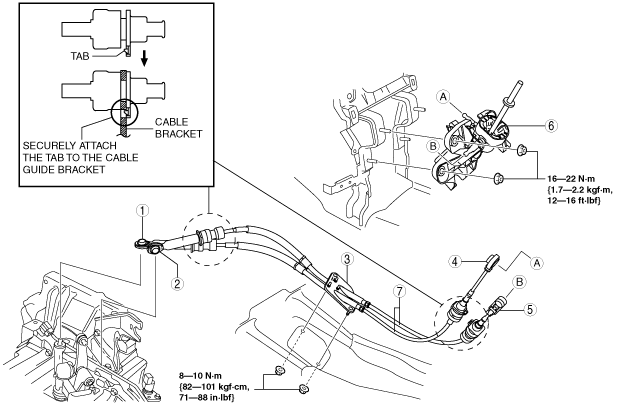

am2zzw00004984
|
|
1
|
Shift cable end (transaxle side)
|
|
2
|
Selector cable end (transaxle side)
|
|
3
|
Seal plate
|
|
4
|
Shift cable end (shift lever component side)
|
|
5
|
Selector cable end (shift lever component side)
|
|
6
|
Shift lever component
|
|
7
|
Cable component
(See Cable Component Removal Note.)
|
Shift Cable and Selector Cable Removal Note
1. Remove the both shift cable end and select cable end using a fastener remover.
am2zzw00001945
|

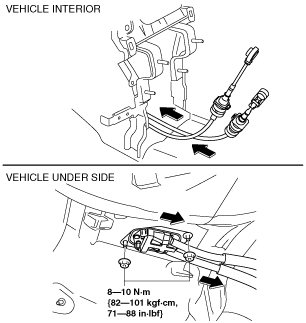

Cable Component Removal Note
1. Working with two people, one person pushes the ends of the shift cable and selector cable (transaxle side) toward the inside of the vehicle, and at the same time, the other person pulls out the cable component by pulling the ends of the shift cable and selector cable (shift lever component side).
am2zzw00000209
|

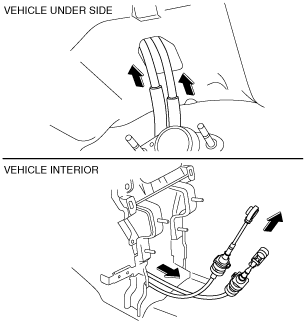

Cable Component Installation Note
1. Working with two people, one person pushes the ends of the shift cable and selector cable (shift lever component side) toward the lower side of the vehicle from the inside, and at the same time, the other person pulls the ends of the shift cable and selector cable (transaxle side), and installs the seal plate.
