BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]
id0740a2800900
L.H.D.
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (2) Boot panel (See FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY.)
- (3) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (4) Front console (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (5) Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (7) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (8) Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)
3. Remove the wiring harness clip from the brake pedal.
4. Remove the brake pedal installation nuts.
5. Remove the snap pin and clevis pin.
6. Pull the power brake unit from the engine compartment side.
7. Pull the brake pedal outward while lifting it.
-
Caution
-
• When removing/installing the blower motor due to a motor rotation malfunction, be careful that the sirocco fan does not interfere with other parts.

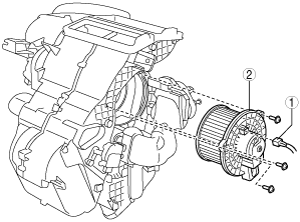

8. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Blower motor
|
9. Install in the reverse order of removal.
R.H.D. (MTX)
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Shift lever knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (2) Boot panel (See FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY.)
- (3) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (4) Front console (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (5) Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (7) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (8) Driver's side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (9) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION)
- (10) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (11) Steering column lower side L-shaped bracket (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (12) Heat duct (RH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
- (13) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
- (14) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
- (15) Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (16) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
3. Disconnect the clutch pedal position switch connector.
4. Remove the clutch pedal installation nut and slide the clutch pedal downward. (See CLUTCH PEDAL REMOVAL/INSTALLATION [F35M-R].) (See CLUTCH PEDAL REMOVAL/INSTALLATION [B65M-R].)
5. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Blower motor
|
6. Install in the reverse order of removal.
Blower motor removal note
-
Caution
-
• When removing/installing the blower motor due to a motor rotation malfunction, be careful that the sirocco fan does not interfere with other parts.

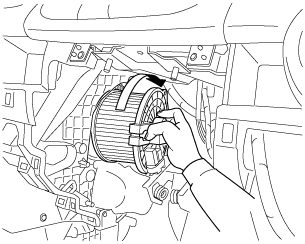

1. Pull out the blower motor from the A/C unit.
2. Rotate the blower motor clockwise approx. 90°.
-
Note
-
• Slide the blower motor to a position where its projecting part does not interfere with the clutch pedal position switch.
3. Pull the blower motor outward while tilting the upper part slightly, and remove it.
R.H.D. (ATX/CVT)
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (2) Front console (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (3) Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (5) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (6) Driver's side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (7) Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
3. Disconnect the intermediate shaft of steering column from the steering gear (pinion shaft). (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
4. Remove the wiring harness clip from the steering column and set the wiring harness aside.
5. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Blower motor
|
6. Install in the reverse order of removal.
Blower motor removal note
-
Caution
-
• When removing/installing the blower motor due to a motor rotation malfunction, be careful that the sirocco fan does not interfere with other parts.

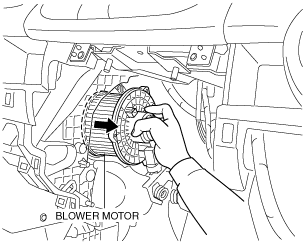

1. Pull out the blower motor from the A/C unit until it contacts the outlet pipe.
2. Pull the blower motor out while lifting the blower motor end up and set the outlet pipe aside.
3. Remove the blower motor while tilting the sirocco fan side upward.
