POWER OUTER MIRROR INSPECTION

id091200002700

Mirror glass adjustment, retract/return

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM REMOVAL/INSTALLATION [3HB].)

4.  Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

5.  Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.

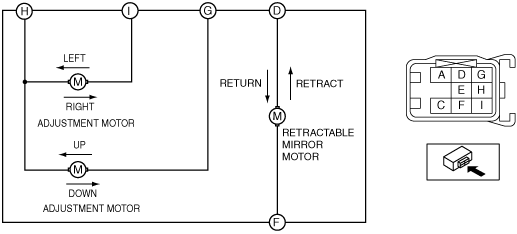

am2zzw00005021

•  If not as specified, replace the power outer mirror.

Mirror operation direction	terminal
	B+	Ground
Up	G	H
Down	H	G
Left	I	H
Right	H	I
Retract	F	D
Return	D	F

Heated outer mirror

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM REMOVAL/INSTALLATION [3HB].)

4.  Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

5.  Apply battery voltage to power outer mirror connector terminal A, and connect terminal C to ground.

acxwzw00000821

•  If not as indicated in the table, or if the resistance is not within the specification, replace the power outer mirror.

acxwzw00000822
