REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles]

id0913004260z3

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the rear buckle installation bolt. (See REAR BUCKLE REMOVAL/INSTALLATION.)

3.  Press the push knob to fold the rear seat back.

am2zzw00000588

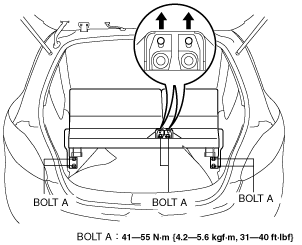

4.  Remove bolts A.

am2zzw00004450

5.  Remove the rear seat back from the rear seat bracket by pulling the rear seat back in the direction of the arrow shown in the figure.

6.  Remove bolts B and remove the center hinge.

am2zzw00004451

7.  Install in the reverse order of removal.
