REAR DOOR LATCH SWITCH INSPECTION

id091400430900

5HB

1. To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 210 mm {8.27 in}.

am2zzw00005186

2. Disconnect the negative battery cable.

3. Remove the following parts:

(1) Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)

(2) Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

(3) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(4) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(5) Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(6) Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(7) Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION.)

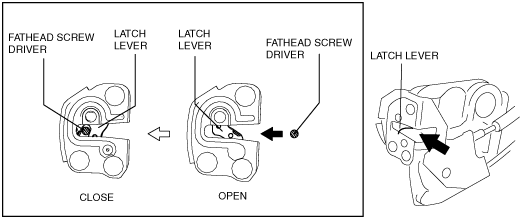

4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am2zzw00000688

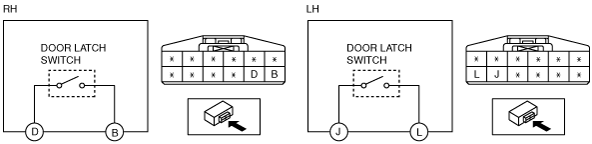

5. Verify that the continuity is as indicated in the table.

am2zzw00000689

• If not as indicated in the table, replace the rear door latch and lock actuator.

am2zzw00000690

4SD

am2zzw00005186

2. Disconnect the negative battery cable.

3. Remove the following parts:

(1) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(3) Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION [4SD].)
