KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM]

id0914004406b0

3HB, 5HB

1. Disconnect the negative battery cable.

2. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3. Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

4. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

5. Disconnect the connector.

am2zzw00000554

6. Remove the nuts.

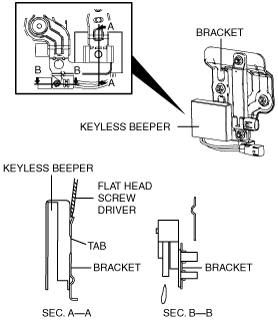

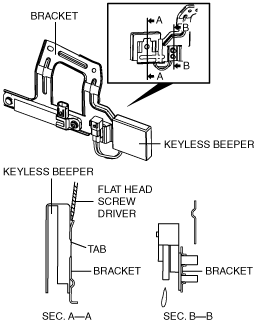

7. Press the keyless beeper tab aside using a tape-wrapped flathead screwdriver.

am2zzw00000555

8. Remove the keyless beeper from the bracket.

9. Install in the reverse order of removal.

4SD
