REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

5HB/3HB

1.  Disconnect the negative battery cable.

2.  Remove the screws.

am2zzw00002188

3.  Slide the rear combination light to the vehicle rear, avoiding the clip.

am2zzw00003365

4.  Disconnect the connectors in the direction of the arrow shown in the figure and remove the rear combination light.

am2zzw00002190

5.  Install in the reverse order of removal.

4SD

1.  Disconnect the negative battery cable.

2.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Remove the fasteners and slightly bend back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector in the direction of the arrow shown in the figure and remove the rear combination light.

am2zzw00004969

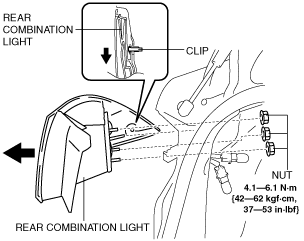

5.  Remove the nuts and slide the rear combination light to the vehicle rear, avoiding the clip.

am2zzw00004970

6.  Install in the reverse order of removal.
