VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700454100

1.  Remove the side panel. (See SIDE PANEL REMOVAL/INSTALLATION)

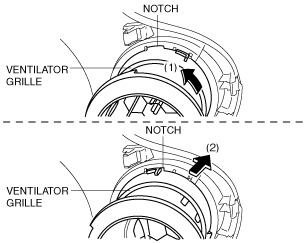

2.  Rotate the ventilator grille to the notch in the direction of the arrow (1) shown in the figure and pull it in the direction of the arrow (2) to remove it.

am2zzw00001513

3.  Install in the reverse order of removal.
