TRUNK SIDE TRIM REMOVAL/INSTALLATION


id091700462300


4SD

1.  Open the trunk lid.

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION [4SD].)
(4)  Trunk mat.
(5)  Trunk board.
(6)  Trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION)

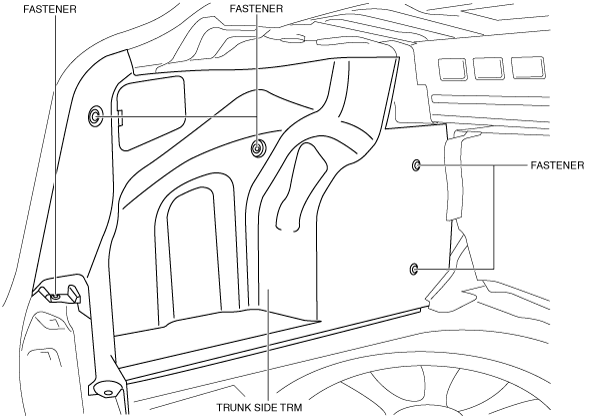

3.  Remove the fasteners in the positions shown in the figure.

am2ccw00000126

4.  Lower the rear seat backs and make the trunk side trim visible from the vehicle interior.

am2ccw00000127

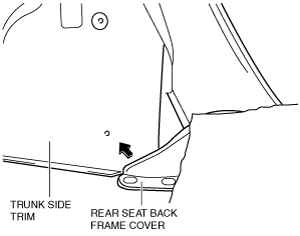

5.  Set the trunk side trim away from the rear seat back frame cover.

am2ccw00000128

6.  Remove the trunk side trim.

7.  Install in the reverse order of removal.


5HB

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION)
(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION)

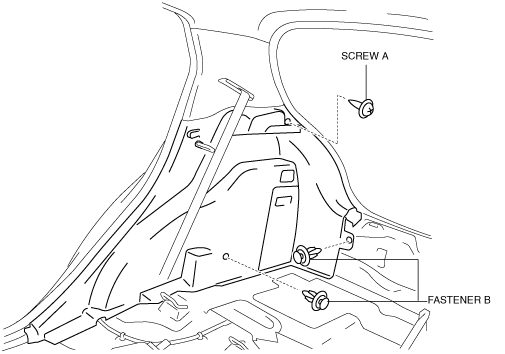

3.  Remove the screw A and fastener B.

am2zzw00003744

4.  Pull the trunk side trim in the direction of the arrow in the order of (1) and (2), then remove the clips C.

am2zzw00001823

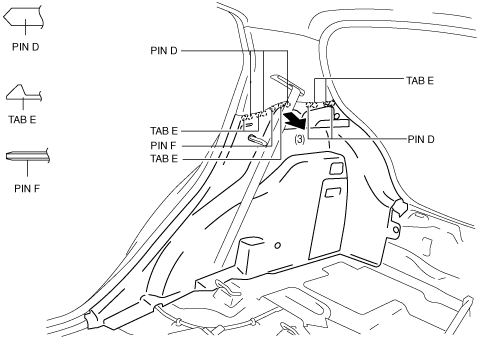

5.  Pull the trunk side trim in the direction of the arrow in the order of (3) and remove it while detaching pins D, tabs E, and pin F.

am2zzw00001824

6.  Disconnect the cargo compartment light connector.

7.  Install in the reverse order of removal.
