FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

Except AutoAlliance Thailand (AAT) Manufactured Vehicles

Standard type

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Remove the screws shown in the figure and bend back the mudguard in the direction of the arrow.

am2zzw00002506

4.  Disconnect the connector.

am2zzw00002488

5.  Remove the screws, then remove the front fog light component.

6.  Remove the aiming adjustment bolt.

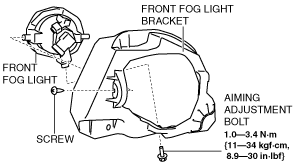

am2zzw00004462

7.  Remove the screw.

8.  Remove the front fog light.

9.  Install in the reverse order of removal.

10.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)

Sport type

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Remove the screws shown in the figure and bend back the mudguard in the direction of the arrow.

am2zzw00002506

4.  Disconnect the connector.

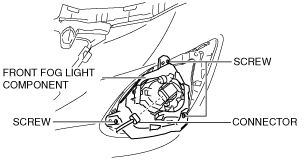

am2zzw00004464

5.  Remove the screws, then remove the front fog light component.

6.  Remove the aiming adjustment bolt.

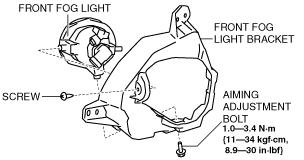

am2zzw00004465

7.  Remove the screw.

8.  Remove the front fog light.

9.  Install in the reverse order of removal.

10.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)

AutoAlliance Thailand (AAT) Manufactured Vehicles

Standard Type

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Remove the screws shown in the figure and bend back the mudguard in the direction of the arrow.

am2zzw00002506

4.  Disconnect the connector.

am2zzw00004463

5.  Remove the screws, then remove the front fog light component.

6.  Remove the aiming adjustment bolt.

am2zzw00004437

7.  Remove the screw.

8.  Remove the front fog light.

9.  Install in the reverse order of removal.

10.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)

Sport Type

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Remove the screws shown in the figure and bend back the mudguard in the direction of the arrow.

am2zzw00002506

4.  Disconnect the connector.

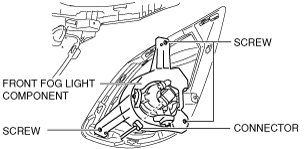

am2zzw00004466

5.  Remove the screws, then remove the front fog light component.

6.  Remove the aiming adjustment bolt.

am2zzw00004467

7.  Remove the screw.

8.  Remove the front fog light.

9.  Install in the reverse order of removal.

10.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
