WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION
id091900474800
1. Disconnect the negative battery cable.
2. Remove the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
L.H.D. (Except AutoAlliance Thailand (AAT) manufactured vehicles)
adejjw00000867
|
L.H.D. (AutoAlliance Thailand (AAT) manufactured vehicles)
am2zzw00004323
|

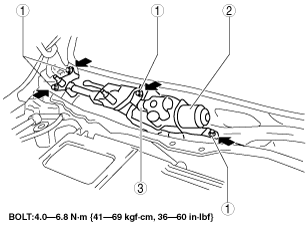

R.H.D. (Except AutoAlliance Thailand (AAT) manufactured vehicles)
am2zzw00002162
|

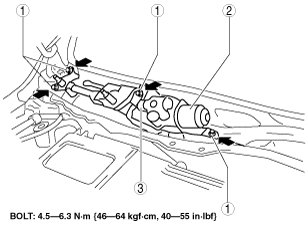

R.H.D. (AutoAlliance Thailand (AAT) manufactured vehicles)
am2zzw00002163
|
|
1
|
Bolt
|
|
2
|
Windshield wiper motor
|
|
3
|
Connector
|
5. Install in the reverse order of removal.
6. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT.)
