ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION
id092000812300
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (2) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (3) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (5) Rear scuff plate (5HB,4SD) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) B-pillar lower trim (5HB,4SD) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (7) Rear seat cushion (3HB) (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (8) Rear seat back (3HB) (See REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
- (9) Trunk end trim (3HB) (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (10) Trunk side trim (3HB) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB].)
- (11) C-pillar trim (3HB) (See C-PILLAR TRIM REMOVAL/INSTALLATION [3HB].)
- (12) Front seat belt adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (13) Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (14) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.) (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION [3HB].)
- (15) Rain sensor cover (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)
3. Disconnect the rain sensor connector. (vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)
4. Partially peel back the seaming welt.
5. Partially peel back the headliner.

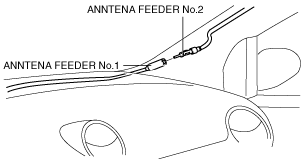

6. Disconnect antenna feeder No.1.
7. Remove in the order indicated in the table.
|
1
|
Clip A
|
|
2
|
Clip B
|
|
3
|
Nut
|
|
4
|
Antenna feeder No.2 (Type A)
|
|
5
|
Antenna feeder No.2 (Type B)
|
8. Install in the reverse order of removal.
Antenna Feeder No.2 (Type B) Installation Note

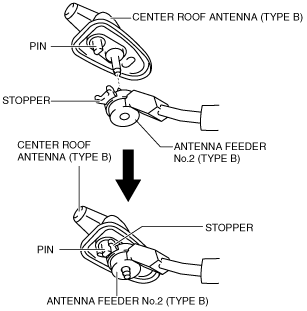

1. Install the antenna feeder No.2 (Type B) stopper to the pin of the center roof antenna (Type B).
