TOTAL END PLAY MEASUREMENT/ADJUSTMENT

id051700665200

Caution

• The total end play is the play (gap) in the axial direction of each planetary gear.

• If the total end play adjustment is not performed, it may cause damage to the thrust needle bearing between each planetary gear or other parts. Accurately perform the following servicing.

Preparation Before Servicing

1. Print out the measurement/adjustment value input sheet. (See MEASUREMENT/ADJUSTMENT VALUE INPUT SHEET.)

Note

• When performing the measurement/adjustment, input the measured and calculated values into the measurement/adjustment value input sheet.

• If the measurement/adjustment value input sheet has already been printed out for the other measurements/adjustments, use the sheet.

Total End Play Measurement/Adjustment

1. Rotate and adjust the rotation handle of the engine stand so that the end cover side is facing upward.

Caution

• To reduce measurement differences during the total end play measurement, adjust so that the alignment surface of the transaxle case with the end cover is level.

bcw6ja00000754

2. Remove any remaining old sealant on the contact surfaces of the transaxle case and end cover.

3. Assemble the shim (FZ11 19 2L1) for the total end play measurement/adjustment.

bcw6ja00000228

4. Assemble the end cover component.

bcw6ja00000229

5. Place a 93—103 N {9.5—10.5 kgf, 21.0—23.1 lbf} weight on the end cover.

Note

• Use a V-block as a weight.

• To reduce difference during the total end play measurement, place the weight near the center of the end cover.

bcw6ja00000230

A :Weight (V-block)

6. Measure the total end play adjustment value using the following procedure:

Note

• The total end play adjustment value is the gap between the transaxle case and end cover with the shim (FZ11 19 2L1) for the total end play measurement/adjustment assembled.

• Recommended measuring instrument: Thickness gauge

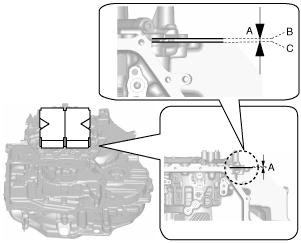

(1) Measure the total end play adjustment value (gap between the transaxle case and end cover) in 4 locations at 90° intervals, and calculate the average end play adjustment value.

bcw6ja00000723

A :Total end play adjustment value

B :End cover end (alignment surface with transaxle case)

C :Transaxle case end (alignment surface with end cover)

(2) Input the measured total end play adjustment value and calculated average of the total end play adjustment value into the measurement/adjustment value sheet.

7. Remove the weight on the end cover.

bcw6ja00000232

A :Weight (V-block)

8. Remove the end cover component.

bcw6ja00000229

9. Remove the shim (FZ11 19 2L1) for the total end play measurement/adjustment.

bcw6ja00000228

10. Measure the thickness of the removed shim (FZ11 19 2L1) for the total end play measurement/adjustment.

Note

• Recommended measuring instrument: Micrometer

11. Input the measured shim thickness into the measurement/adjustment value input sheet.

12. Select the appropriate shim from the following table.

Range^*

Shim thickness

Exceeds 3.25 mm {0.128 in}, 3.35 mm {0.132 in} or less

2.7 mm {0.106 in}

Exceeds 3.15 mm {0.124 in}, 3.25 mm {0.128 in} or less

2.6 mm {0.102 in}

Exceeds 3.05 mm {0.120 in}, 3.15 mm {0.124 in} or less

2.5 mm {0.098 in}

Exceeds 2.95 mm {0.116 in}, 3.05 mm {0.120 in} or less

2.4 mm {0.094 in}

Exceeds 2.85 mm {0.112 in}, 2.95 mm {0.116 in} or less

2.3 mm {0.091 in}

Exceeds 2.75 mm {0.108 in}, 2.85 mm {0.112 in} or less

2.2 mm {0.087 in}

Exceeds 2.65 mm {0.104 in}, 2.75 mm {0.108 in} or less

2.1 mm {0.083 in}

Exceeds 2.55 mm {0.10 in}, 2.65 mm {0.104 in} or less

2.0 mm {0.079 in}

Exceeds 2.45 mm {0.0965 in}, 2.55 mm {0.10 in} or less

1.9 mm {0.075 in}

Exceeds 2.35 mm {0.0925 in}, 2.45 mm {0.0965 in} or less

1.8 mm {0.071 in}

Range^*	Shim thickness
Exceeds 3.25 mm {0.128 in}, 3.35 mm {0.132 in} or less	2.7 mm {0.106 in}
Exceeds 3.15 mm {0.124 in}, 3.25 mm {0.128 in} or less	2.6 mm {0.102 in}
Exceeds 3.05 mm {0.120 in}, 3.15 mm {0.124 in} or less	2.5 mm {0.098 in}
Exceeds 2.95 mm {0.116 in}, 3.05 mm {0.120 in} or less	2.4 mm {0.094 in}
Exceeds 2.85 mm {0.112 in}, 2.95 mm {0.116 in} or less	2.3 mm {0.091 in}
Exceeds 2.75 mm {0.108 in}, 2.85 mm {0.112 in} or less	2.2 mm {0.087 in}
Exceeds 2.65 mm {0.104 in}, 2.75 mm {0.108 in} or less	2.1 mm {0.083 in}
Exceeds 2.55 mm {0.10 in}, 2.65 mm {0.104 in} or less	2.0 mm {0.079 in}
Exceeds 2.45 mm {0.0965 in}, 2.55 mm {0.10 in} or less	1.9 mm {0.075 in}
Exceeds 2.35 mm {0.0925 in}, 2.45 mm {0.0965 in} or less	1.8 mm {0.071 in}

* :The range is the sum of the average value of the total end play adjustment value and the thickness value of the removed shim (FZ11 19 2L1) for the total end play measurement/adjustment.

Range = B + C

B: Average total end play adjustment value

C: Thickness of shim (FZ11 19 2L1) for total end play measurement/adjustment

Note

Example

B: Average total end play adjustment value is 0.115 mm {0.00453 in}

C: Thickness of the shim (FZ11 19 2L1) for the total end play measurement/adjustment is 2.710 mm {0.1067 in}

Range = 0.115 mm {0.00453 in}+ 2.710 mm {0.1067 in}= 2.825 mm {0.1112 in}, a shim of 2.2 mm {0.087 in} thickness should be selected.
