DIFFERENTIAL DISASSEMBLY
id051500169500
1. Perform the differential backlash adjustment. (See DIFFERENTIAL BACKLASH ADJUSTMENT.)
2. Disassemble the differential in the order shown in the figure.
bf62zm00000098
|
|
1
|
Ball bearing
(See Ball Bearing Removal Note.)
|
|
2
|
Ring gear
(See Ring Gear Removal Note.)
|
|
3
|
Pin
(See Pin Removal Note.)
|
|
4
|
Pinion shaft
|
|
5
|
Pinion gear
|
|
6
|
Thrust washer
|
|
7
|
Side gear
|
|
8
|
Thrust washer
|
|
9
|
Differential case
|
Ball Bearing Removal Note
1. Secure the differential in a vice.
bf62zm00000099
|
2. Remove the ball bearing (clutch housing side) using the SST.
bf62zm00000100
|
3. Remove the ball bearing (transaxle case side) using the SST.
bf62zm00000101
|
Ring Gear Removal Note
1. Secure the differential in a vice as shown in the figure.

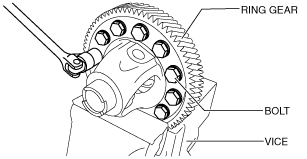

bf62zm00000102
|
2. Remove the ring gear installation bolts.
3. Remove the differential from the vice.
4. Set the differential in a press as shown in the figure.
bf62zm00000103
|
5. Remove the ring gear using the press.
Pin Removal Note
1. Remove the pin using the punch.
bf62zm00000104
|
