DIFFERENTIAL ASSEMBLY
id051500169600

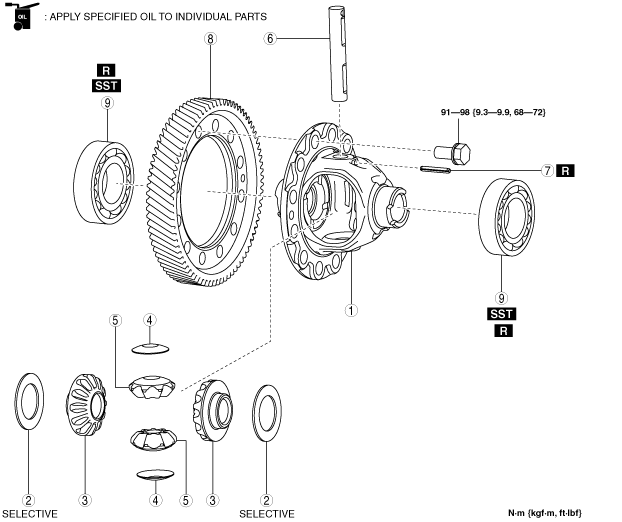

1. Assemble the differential in the order shown in the figure.
2. Perform the differential backlash measurement. (See DIFFERENTIAL BACKLASH ADJUSTMENT.)
bf62zm00000105
|
|
1
|
Differential case
|
|
2
|
Thrust washer
|
|
3
|
Side gear
|
|
4
|
Thrust washer
|
|
5
|
Pinion gear
|
|
6
|
Pinion shaft
|
|
7
|
Pin
(See Pin Assembly Note.)
|
|
8
|
Ring gear
(See Ring Gear Assembly Note.)
|
|
9
|
Ball bearing
|
Pin Assembly Note
1. Install a new pin as shown in the figure and secure the pinion shaft.
bf62zm00000106
|
Ring Gear Assembly Note
1. Assemble the ring gear so that the holes of the differential and the ring gear are aligned as shown in the figure.
bf62zm00000107
|
2. Temporarily tighten the bolts shown in the figure and position the ring gear and the differential.
bf62zm00000108
|
3. Set the ring gear and the differential in the press as shown in the figure.
bf62zm00000109
|
4. Press fit the ring gear into the differential using the press.
5. Secure the differential in a vice.
bf62zm00000110
|

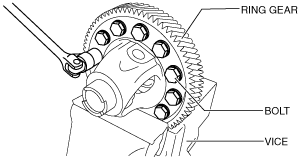

6. Install the ring gear by tightening the ring gear installation bolts in several passes.
Ball Bearing Installation Note
1. Set the differential, ball bearing (clutch housing side), and SST in a press as shown in the figure.
bf62zm00000111
|
2. Assemble the ball bearing (clutch housing side) using the press.
3. Set the differential, ball bearing (transaxle case side), and SST in the press as shown in the figure.
bf62zm00000112
|
4. Assemble the ball bearing (transaxle case side) using the press.
