IDLER DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0110q3820100

Note

•  The idler is only installed to vehicles without A/C.

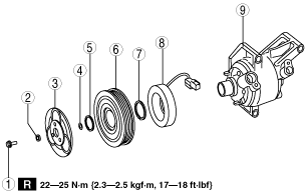

1.  Disassemble in the order shown in the figure.

2.  Assemble in the reverse order of disassembly.

3.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

am2zzw00011231

1	Bolt (See Bolt Removal/Installation Note.)
2	Washer
3	Pressure plate
4	Shim
5	Snap ring (See Snap Ring Removal/Installation Note.)
6	Idler pulley (See Idler Pulley Removal Note.) (See Idler Pulley Installation Note.)
7	Snap ring (See Snap Ring Removal/Installation Note.)
8	Stator
9	Idler body

Bolt Removal/Installation Note

1.  When removing or installing the bolt, lock the idler pulley against rotation using the following procedure.

Caution

•  When connecting the positive battery cable to the magnetic clutch connector, use a cable with a female terminal of the correct size. Otherwise, load will be applied to the male terminal, resulting in deformation or damage, and poor contact. In addition, the positive battery cable could disconnect from the connector resulting in a short circuit.

1.  Apply battery positive voltage to the magnetic clutch terminal and apply battery negative voltage to the idler body.

am2zzw00011232

2.  Wrap the no longer usable drive belt tightly around the idler pulley.

am2zzw00011233

3.  Hold the drive belt in place with pliers.

4.  Remove or install the bolt.

5.  When replacing the idler body, replace the bolt.

Snap Ring Removal/Installation Note

1.  Remove/install the snap ring using snap ring pliers.

am3uuw00013136

Idler Pulley Removal Note

Note

•  Wrap protective tape around the tabs of the SST (49 0839 425C) so that the idler pulley is not scratched.

1.  Remove the idler pulley using the SST (49 0839 425C, 49 U027 001).

am2zzw00011234

Caution

•  If the idler pulley is removed with the SST (49 0839 425C) tabs attached to the stator, the stator could be damaged. When using the SST (49 0839 425C), make sure the tabs are not attached.

am2zzw00011235

Idler Pulley Installation Note

1.  Set the SST (49 F034 207) as shown in the figure.

am3uuw00013141

2.  Install the idler pulley using the SST (49 0839 425C, 49 F034 207).

am2zzw00011236

Caution

•  If the SSTs are not properly positioned when the idler pulley is press-fit, the idler axle will interfere with the SSTs, possibly damaging component parts. Verify that the SST and axle are properly positioned and perform the press-fit procedure very carefully.
