MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0110q3820200

Note

• The idler is only installed to vehicles without A/C.

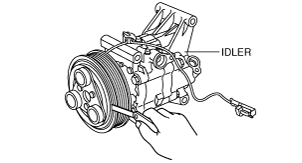

1. Measure the clearance around the entire circumference between the pressure plate and idler pulley using a feeler gauge.

am3uuw00013143

2. Verify that the clearance is the specification.

• If the clearance is not within the specification, adjust the clearance by changing the type or number of the shim kit. (See IDLER DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

am3uuw00013144

Magnetic clutch clearance (reference)

0.3—0.6 mm {0.012—0.023 in}
