COOLING SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0112q3002800

Outline

• Passing water resistance is reduced by improvement of the engine coolant passage shape.

• Pump efficiency has been improved by changing the water pump impeller to a closed impeller.

• An engine coolant control valve has been adopted to improve fuel economy during low engine loads. (with coolant control valve)

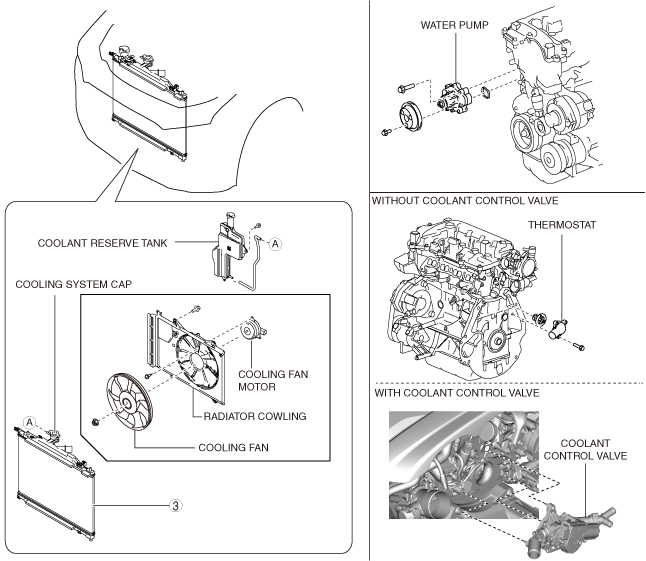

Structural View

am2zzn00004942

Flow Chart

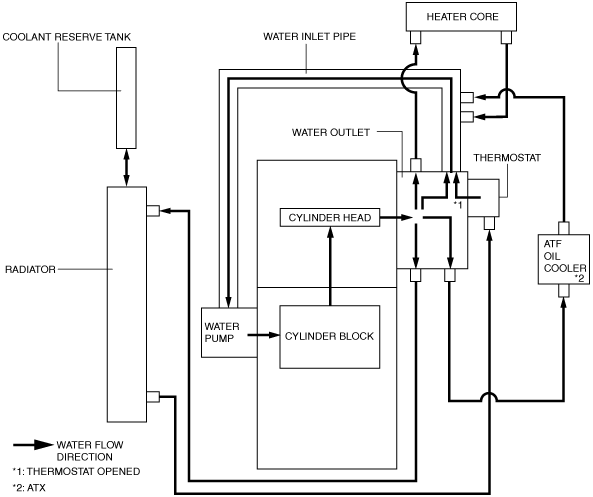

Without coolant control valve

am2zzn00002668

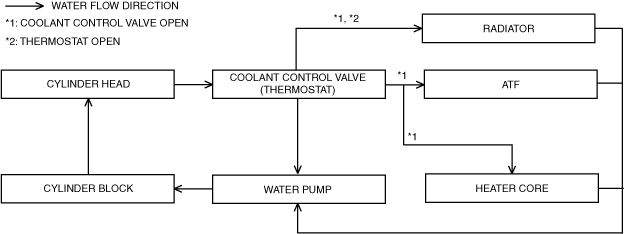

With coolant control valve

ac5wzn00004595

Structure

• Consists of the following parts:

Radiator	(See RADIATOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Cooling system cap	(See COOLING SYSTEM CAP [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Thermostat	(See THERMOSTAT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Coolant control valve	(See COOLANT CONTROL VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Water pump	(See WATER PUMP [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Cooling fan component	(See COOLING FAN COMPONENT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Cooling fan relay	(See COOLING FAN RELAY [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
