EMISSION SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0116q1110100

Outline

• A single-nano catalyst has been adopted to the catalytic converter (TWC) to improve emission gas purification efficiency.

Structural View

Engine compartment side

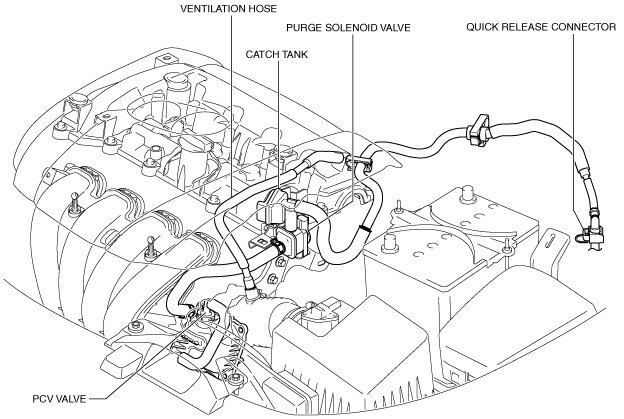

am2zzn00003168

Exhaust system side

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

am2zzn00003169

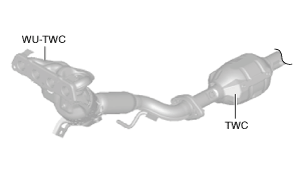

SKYACTIV-G 1.5 (with 4-2-1 exhaust system)

am2zzn00003170

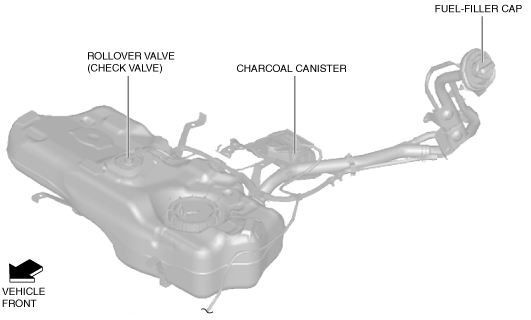

Fuel tank side

am2zzn00003171

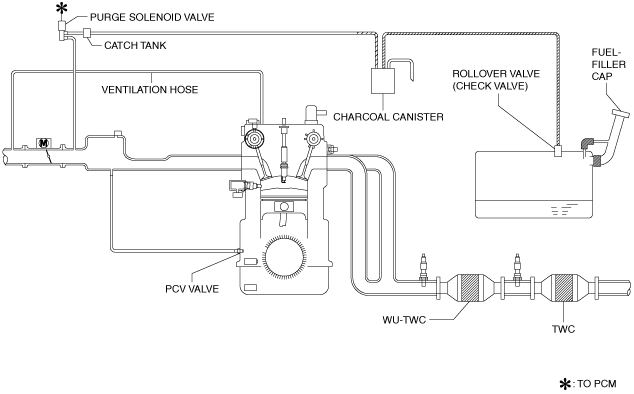

System Diagram

am2zzn00003172

Vacuum Hose Routing Diagram

L.H.D.

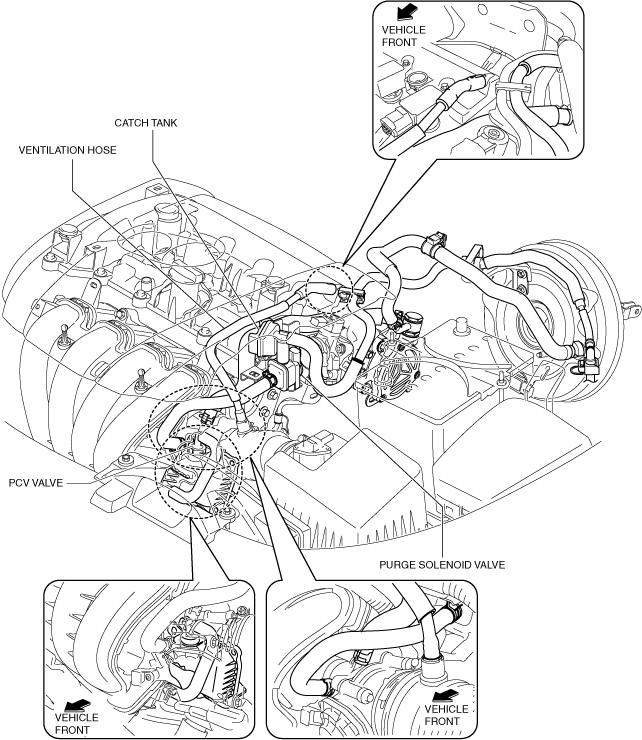

am2zzn00004945

R.H.D.

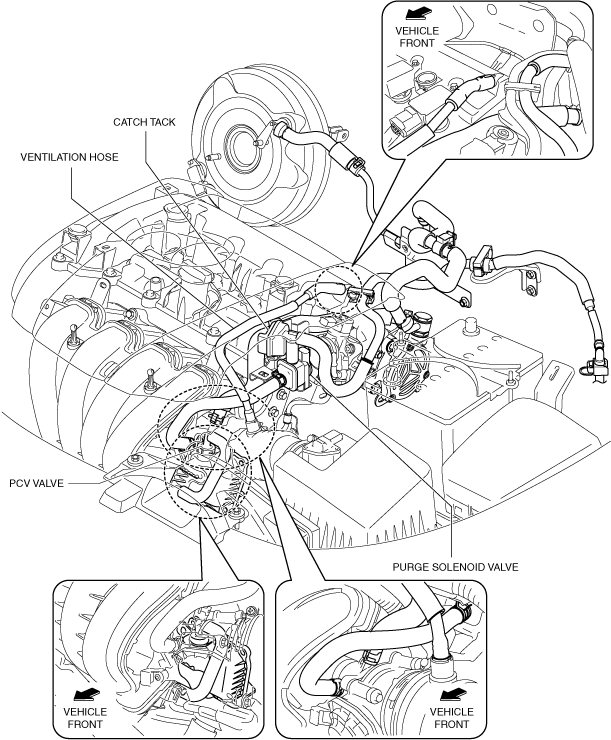

am2zzn00004946

Structure

• The emission system consists of the following parts:

Part/System name	Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Catch tank	(See CATCH TANK [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Check valve	(See CHECK VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Quick release connector (emission system)	(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Specification

Item

Specification

Catalyst form

WU-TWC (monolith)

TWC (monolith)

EVAP control system

Charcoal canister type

PCV system

Closed type
