CHARGING SYSTEM [WITHOUT i-ELOOP (SKYACTIV-D 1.5)]

id0117q61029j8

Note

• For location index of the generator, DC-DC converter (i-ELOOP), capacitor on vehicles with i-ELOOP, refer to the i-ELOOP section. (See i-ELOOP [i-ELOOP].)

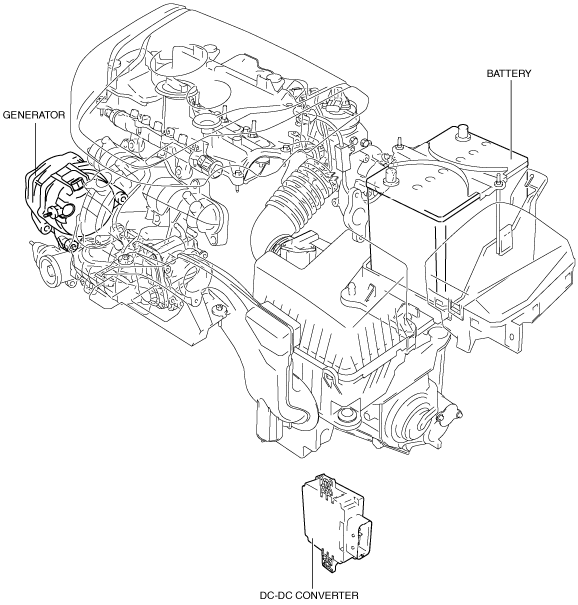

Structural View

am2zzn00003342

Structure

• Consists of the following parts:

Battery

(See BATTERY [SKYACTIV-D 1.5].)

Charging system warning light

(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].)

DC-DC converter

(See DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-D 1.5)].)

Generator

(See GENERATOR [WITHOUT i-ELOOP (SKYACTIV-D 1.5)].)

Battery	(See BATTERY [SKYACTIV-D 1.5].)
Charging system warning light	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].)
DC-DC converter	(See DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-D 1.5)].)
Generator	(See GENERATOR [WITHOUT i-ELOOP (SKYACTIV-D 1.5)].)
