CHARGING SYSTEM [WITHOUT i-ELOOP (SKYACTIV-G 1.3, SKYACTIV-G 1.5)]

id0117q71029q8

Note
•  For location index of the generator, DC-DC converter (i-ELOOP), capacitor on vehicles with i-ELOOP, refer to the i-ELOOP section. (See i-ELOOP [i-ELOOP].)

Outline

•  Regulator-less generator (built-in power transistor) has been adopted.
•  A generator using two delta connection type stator coils has been adopted.

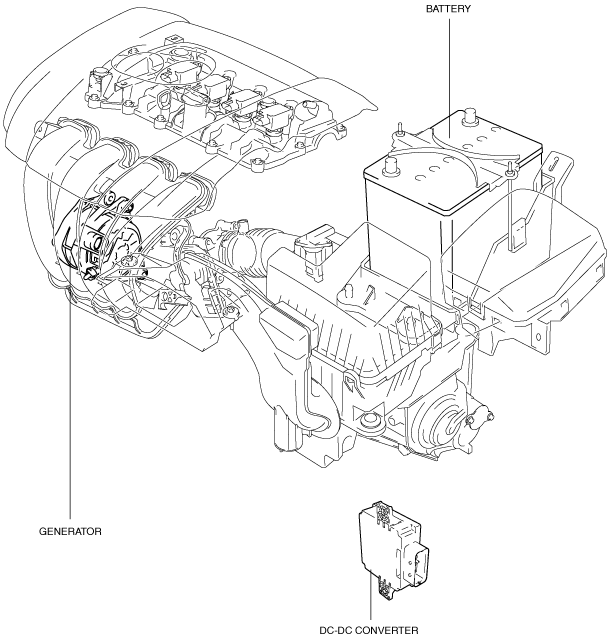

Structural View

am2zzn00002676

Structure

•  Consists of the following parts:

Battery
(See BATTERY [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Generator
(See GENERATOR [WITHOUT i-ELOOP (SKYACTIV-G 1.3, SKYACTIV-G 1.5)].)
DC-DC converter (Vehicle with i-stop)
(See DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-G 1.3, SKYACTIV-G 1.5)].)
Charging system warning light
(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
