IGNITION SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0118q3108200

Outline

• A direct ignition coil for independent ignition control has been adopted.

• An ignition coil built-into the ion sensor has been adopted.(SKYACTIV-G 1.5 (with 4-2-1 exhaust system))

• An iridium spark plug has been adopted.

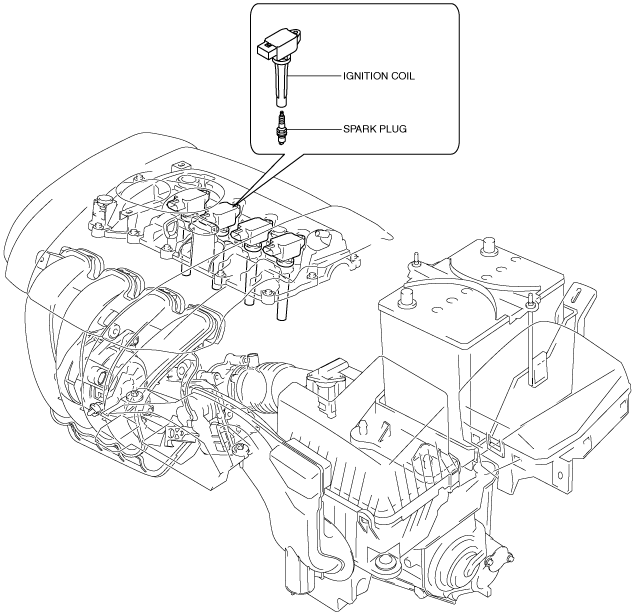

Structural View

am2zzn00002673

Structure

• Consists of the following parts:

Spark plug	(See SPARK PLUG [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Ignition coil	(See IGNITION COIL [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
