•  The resistor controls the blower motor rotation speed.

•  The resistor controls the supply voltage to the blower motor according to the fan switch conditions, and adjusts the blower motor rotation speed (airflow volume).

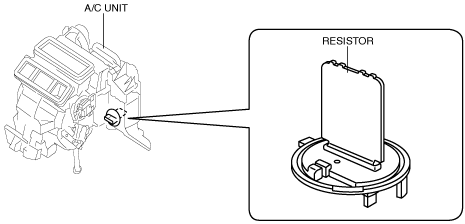

•  The resistor is positioned in the A/C unit.

•  A thin, card type resistor has been adopted.

am2zzn00002125

•  For the resistor operation, refer to the BLOWER SYSTEM. (See BLOWER SYSTEM.)

•  Not applicable
