RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-D 1.5]

id0711008014l2

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Bend back the front side of the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

4.  Remove the washer tank installation bolt (lower-side). (See WASHER TANK REMOVAL/INSTALLATION.)

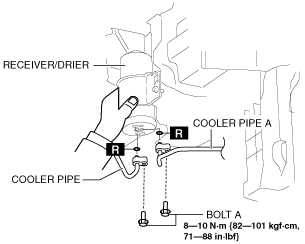

5.  Remove bolts A while holding the receiver/drier by hand.

am2zzw00009607

6.  Disconnect the cooler pipe and cooler pipe A.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

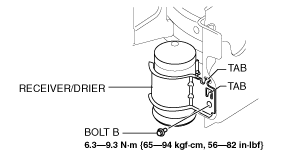

7.  Remove the bolt.

am2zzw00009608

8.  Detach the tabs from the body and remove the receiver/drier.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

9.  Install in the reverse order of removal. (See Receiver/drier Installation Note.)

10.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Receiver/drier Installation Note

1.   After replacing the receiver/drier, add compressor oil to the refrigeration cycle.
