AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1801500

With Mechanical Lock Type Air Intake Actuator

L.H.D.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3. Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

4. Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation

A

F

FRESH → RECIRCULATE

F

A

RECIRCULATE → FRESH

B+ Terminal	Ground Terminal	Operation
A	F	FRESH → RECIRCULATE
F	A	RECIRCULATE → FRESH

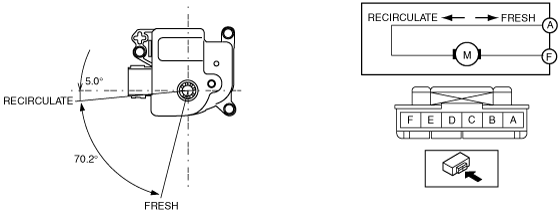

am2zzw00008314

• If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

R.H.D.:

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3. Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

4. Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation

A

F

RECIRCULATE → FRESH

F

A

FRESH → RECIRCULATE

B+ Terminal	Ground Terminal	Operation
A	F	RECIRCULATE → FRESH
F	A	FRESH → RECIRCULATE

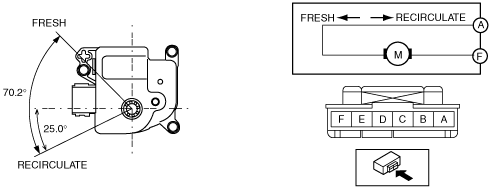

am2zzw00008315

• If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

With Potentiometer Type Air Intake Actuator

L.H.D.:

Caution

• If the lever position exceeds the operation range shown in the figure, the circuit in the actuator could be damaged. Always perform an actuator operation inspection with the lever movement within the range shown in the figure.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3. Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

4. Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation

A

F

RECIRCULATE → FRESH

F

A

FRESH → RECIRCULATE

B+ Terminal	Ground Terminal	Operation
A	F	RECIRCULATE → FRESH
F	A	FRESH → RECIRCULATE

• If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

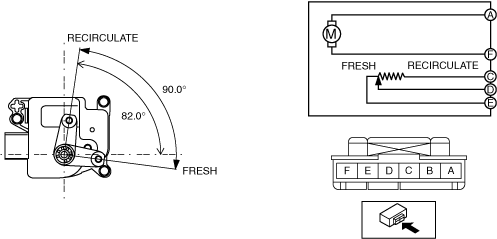

ac3wzw00003022

5. Verify that the resistance between terminals C and D, D and E matches the air intake actuator operation as shown in the graph.

ac3wzw00003023

• If the operation condition and resistance are not normal, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

R.H.D.

Caution

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3. Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

4. Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation

A

F

FRESH → RECIRCULATE

F

A

RECIRCULATE → FRESH

B+ Terminal	Ground Terminal	Operation
A	F	FRESH → RECIRCULATE
F	A	RECIRCULATE → FRESH

• If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

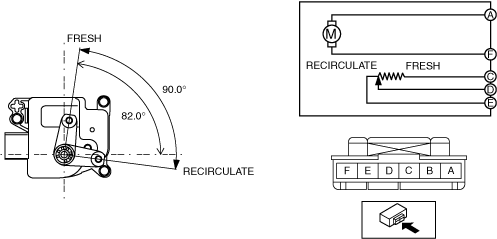

am2zzw00014343

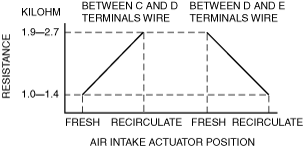

5. Verify that the resistance between terminals C and D, D and E matches the air intake actuator operation as shown in the graph.

am2zzw00014344

• If the operation condition and resistance are not normal, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
