ADJUSTER ANCHOR REMOVAL/INSTALLATION

id081100802000

Warning

•  The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery cable or work carefully, avoiding excessive impact to the lower part of the B-pillar.

1.  Switch the ignition off.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Set the adjuster to the lowest position.

4.  Remove the adjuster anchor cover. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

5.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(5)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

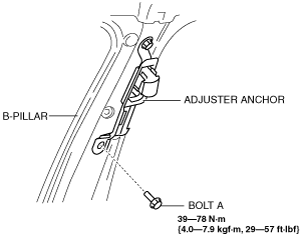

6.  Remove bolt A.

am2zzw00009805

7.  Remove bolt B.

am2zzw00009806

8.  Remove the guide.

9.  Remove the adjuster anchor.

10.  Install in the reverse order of removal.
