DTC: 26:Er82 [AUDIO]
id0902f6037000
|
Description |
Microphone circuit malfunction |
|---|---|
|
Detection condition
|
Short to power supply detected in microphone input circuit.
|
|
Fail-safe
|
Not applicable
|
|
Possible cause
|
• Microphone connector or terminal malfunction
• Bluetooth® unit connector or terminal malfunction

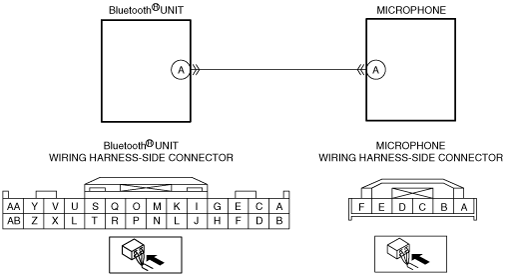

• Short to power supply in wiring harness between Bluetooth® unit terminal A and microphone terminal A
• Microphone malfunction
• Bluetooth® unit malfunction
|
 |
|
Diagnostic Procedure
|
Step |
Inspection |
Action |
|
|---|---|---|---|
|
1
|
INSPECT MICROPHONE CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery cable.
• Disconnect the microphone connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 5.
|
||
|
2
|
INSPECT Bluetooth® UNIT CONNECTOR CONDITION
• Disconnect the Bluetooth® unit connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 5.
|
||
|
3
|
INSPECT MICROPHONE INPUT CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the microphone and Bluetooth® unit connectors are disconnected.
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Measure the voltage at the microphone terminal A (wiring harness-side).
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
|
No
|
Refer to the wiring diagram and verify whether or not there is a common connector between Bluetooth® unit terminal A and microphone terminal A.
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to power supply.
Go to Step 5.
|
||
|
4
|
VERIFY IF MALFUNCTIONING LOCATION IS MICROPHONE DEPENDING ON REPEATABILITY
• Always reconnect all disconnected connectors.
• Connect the negative battery cable.
• Clear the DTC for the Bluetooth® unit.
(See CLEARING DTC [AUDIO].)
• Perform the Bluetooth® unit DTC inspection.
(See DTC INSPECTION [AUDIO].)
• Is the same DTC present?
|
Yes
|
Replace the microphone, then go to the next step.
|
|
No
|
Go to Step 6.
|
||
|
5
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery cable.
• Clear the DTC for the Bluetooth® unit.
(See CLEARING DTC [AUDIO].)
• Perform the DTC inspection for the Bluetooth® unit.
(See DTC INSPECTION [AUDIO].)
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the Bluetooth® unit.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
6
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [AUDIO].)
|
|
No
|
DTC troubleshooting completed.
|
||
