1
|
INSPECT MICROPHONE CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery cable.
• Disconnect the microphone connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 6.
|
|
2
|
INSPECT Bluetooth® UNIT CONNECTOR CONDITION
• Disconnect the Bluetooth® unit connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 6.
|
|
3
|
INSPECT MICROPHONE CIRCUIT FOR SHORT TO GROUND
• Verify that the microphone and Bluetooth® unit connectors are disconnected.
• Inspect for continuity between microphone terminal A (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Refer to the wiring diagram and verify whether or not there is a common connector between Bluetooth® unit terminal A and microphone terminal A.
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to Step 6.
|
|
No
|
Go to the next step.
|
|
4
|
INSPECT MICROPHONE CIRCUIT FOR OPEN CIRCUIT
• Verify that the microphone and Bluetooth® unit connectors are disconnected.

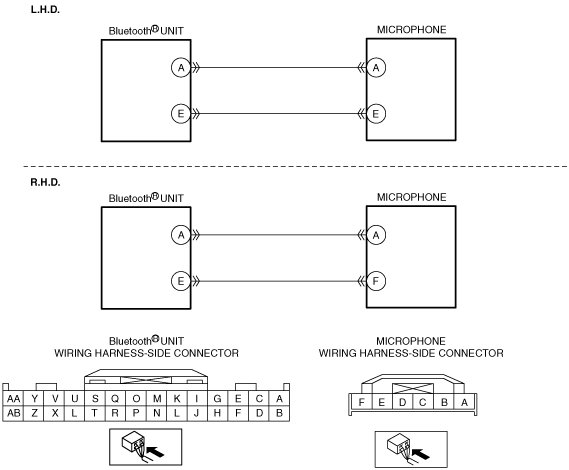

• Inspect for continuity between the following terminals (wiring harness-side):
-
― Bluetooth® unit terminal E and microphone terminal E (L.H.D.)
― Bluetooth® unit terminal E and microphone terminal F (R.H.D.)
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
• Bluetooth® unit terminal E and microphone terminal E (L.H.D.)
• Bluetooth® unit terminal E and microphone terminal F (R.H.D.)
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has an open circuit.
Go to Step 6.
|
|
5
|
VERIFY IF MALFUNCTIONING LOCATION IS MICROPHONE DEPENDING ON REPEATABILITY
• Always reconnect all disconnected connectors.
• Connect the negative battery cable.
• Clear the DTC for the Bluetooth ® unit.
• Perform the Bluetooth ® unit DTC inspection.
• Is the same DTC present?
|
Yes
|
Replace the microphone, then go to the next step.
|
|
No
|
Go to Step 7.
|
|
6
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery cable.
• Clear the DTC for the Bluetooth ® unit.
• Perform the DTC inspection for the Bluetooth ® unit.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the Bluetooth ® unit.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
7
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
