REAR DOOR CHECKER REMOVAL/INSTALLATION

id091100520700

1.  Fully close the rear door glass.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Power window subswitch (Rear door) (with power window system) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)  Regulator handle (with manual window system) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)

(3)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

4.  Remove the bolt.

am2zzw00014902

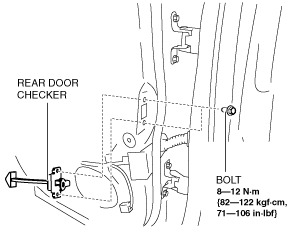

5.  Remove the bolts.

am2zzw00008893

6.  Pull out the rear door checker from the rear speaker installation hole.

7.  Install in the reverse order of removal.
