REAR POWER WINDOW MOTOR INSPECTION

id091200001900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the front power window motor connector.

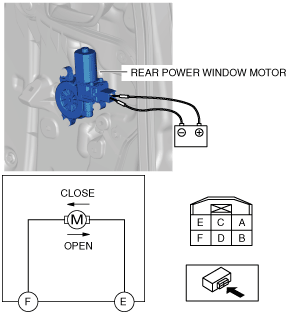

5.  Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.

B+ Terminal	Ground Terminal	Operation
E	F	Close
F	E	Open

am2zzw00008228

•  If the rear power window motor does not operate as indicated in the table, replace it. (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION.)
