REAR MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION

id091200807100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Regulator handle (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION.)

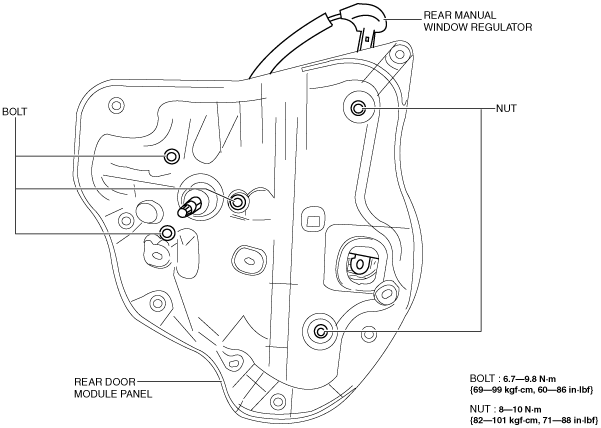

3.  Remove the nuts.

am2zzw00009864

4.  Remove the bolts.

5.  Remove the rear manual window regulator.

6.  Install in the reverse order of removal.
