REAR DOOR LOCK-LINK SWITCH INSPECTION

id091400005800

LH

1.  Fully lower the rear door glass.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  If the door lock condition is to be inspected, pull the door lock knob cable, or press it in.

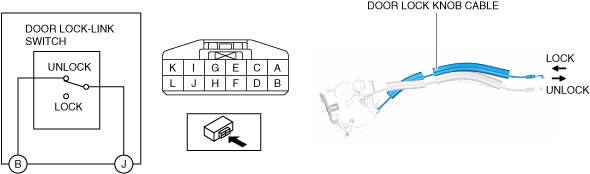

5.  Verify that the continuity is as indicated in the table.

am2zzw00013572

am2zzw00013573

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

RH

1.  Fully lower the rear door glass.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  If the door lock condition is to be inspected, pull the door lock knob cable, or press it in.

5.  Verify that the continuity is as indicated in the table.

am2zzw00013574

am2zzw00013575

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
