THEFT-DETERRENT HORN REMOVAL/INSTALLATION

id091400517500

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim (LH) to the position allowing removal of the theft-deterrent horn.(See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

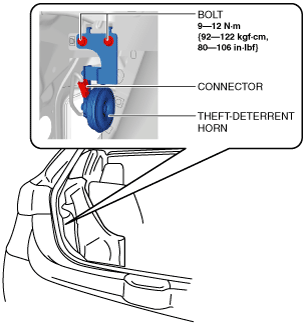

am2zzw00008340

5.  Remove the bolts.

6.  Remove the theft-deterrent horn.

7.  Install in the reverse order of removal.

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim (RH) to the position allowing removal of the theft-deterrent horn.(See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

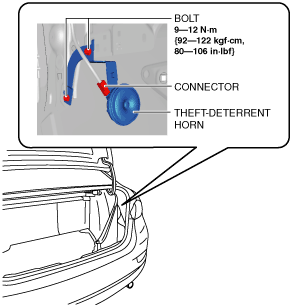

am2zzw00008339

5.  Remove the bolts.

6.  Remove the theft-deterrent horn.

7.  Install in the reverse order of removal.
