DECORATION PANEL REMOVAL/INSTALLATION

id091700600800

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION.)

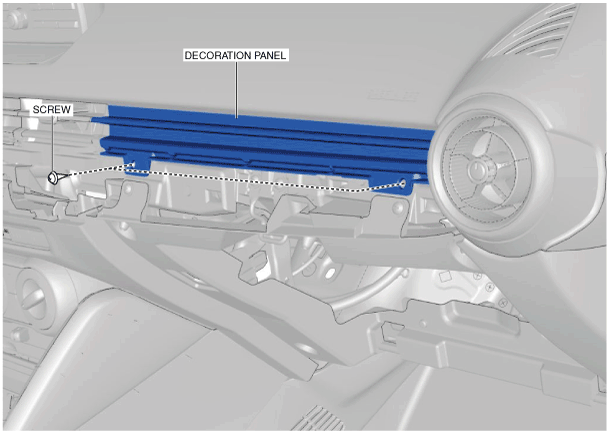

3.  Remove the screws.

am2zzw00007588

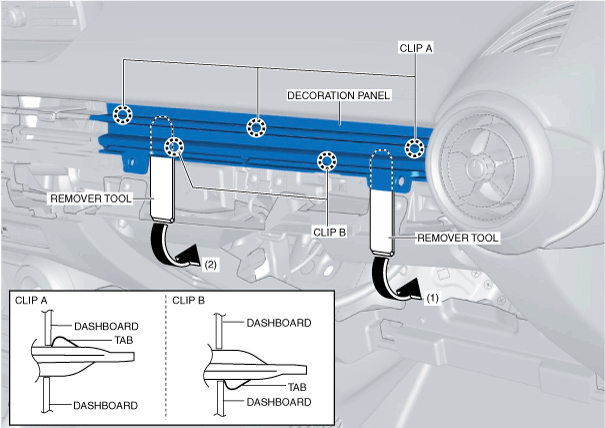

4.  Insert your hand from the glove compartment opening and while pressing the tabs of clips A and B, move the remover tool in the order of arrows (1) and (2) and detach clips A and B from the dashboard.

am2zzw00014312

5.  Remove the decoration panel.

6.  Install in the reverse order of removal.
