FRONT DOOR TRIM REMOVAL/INSTALLATION

id091700603500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the power window main switch (driver-seat) or the power window subswitch (front passenger-seat). (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

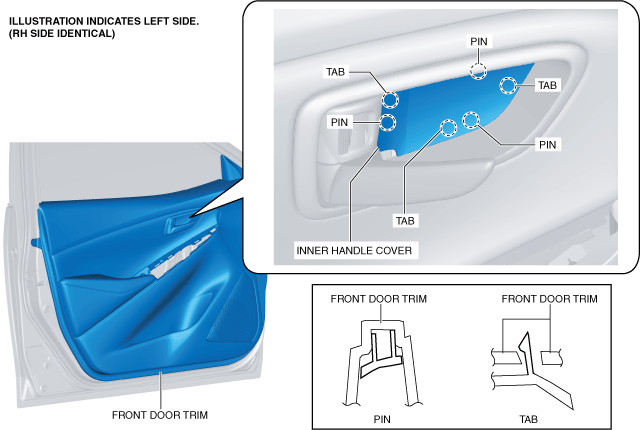

3.  Remove the inner handle cover while detaching the tabs, pins.

am2zzw00013705

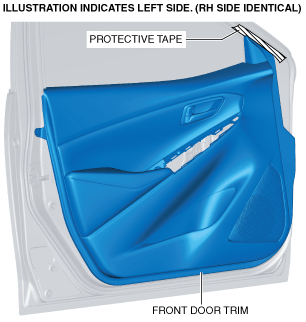

4.  Affix protective tape to the shaded position shown in the figure.

am2zzw00014191

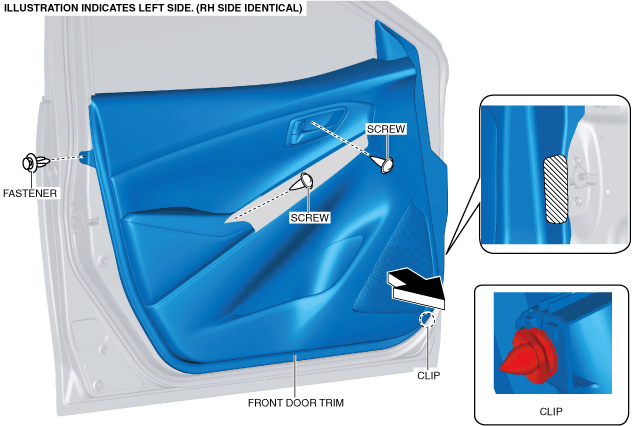

5.  Remove the screws.

am2zzw00013706

6.  Remove the fastener.

7.  Hold the shaded area shown in the figure with your hand, pull the front door trim in the direction of the arrow, and detach the clip.

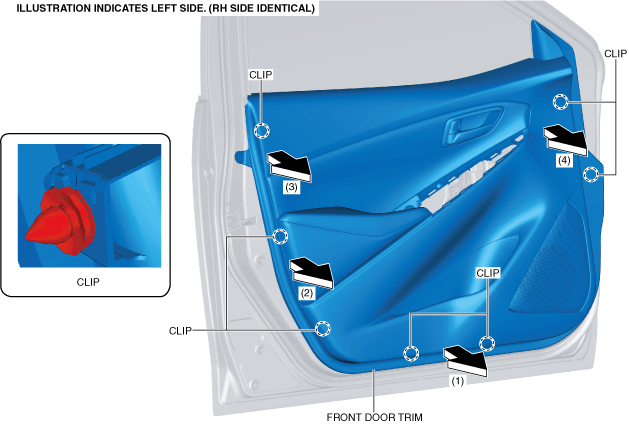

8.  Pull the front door trim in the order of arrows (1), (2), (3) and (4) shown in the figure and detach the clips.

am2zzw00014192

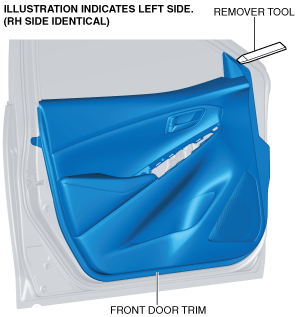

9.  Insert the remover tool into the position shown in the figure.

am2zzw00013707

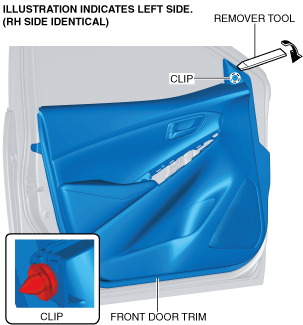

10.  Move the remover tool in the direction of the arrow shown in the figure, and detach the clip.

am2zzw00014293

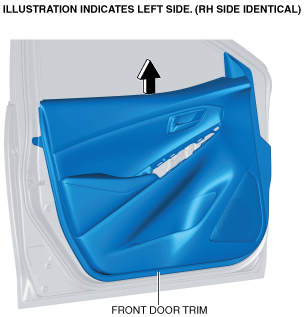

11.  Move the front door trim in the direction of the arrow shown in the figure and remove the front door trim.

am2zzw00013708

12.  Remove the front inner weatherstrip from the front door trim.

am2zzw00014193

13.  Install in the reverse order of removal. (See Front Inner Weatherstrip Installation Note.)

Front Inner Weatherstrip Installation Note

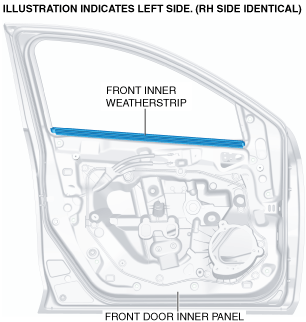

1.  Install the front inner weatherstrip to the front door inner panel.

am2zzw00014194
