PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION
id091700606300
Removal
1. Remove the following parts:
2. Partially peel back the seaming welt.
3. Remove the bolt.
am2zzw00014180
|
4. Remove the screws.
5. Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips, hooks, tab, and guide from the dashboard.

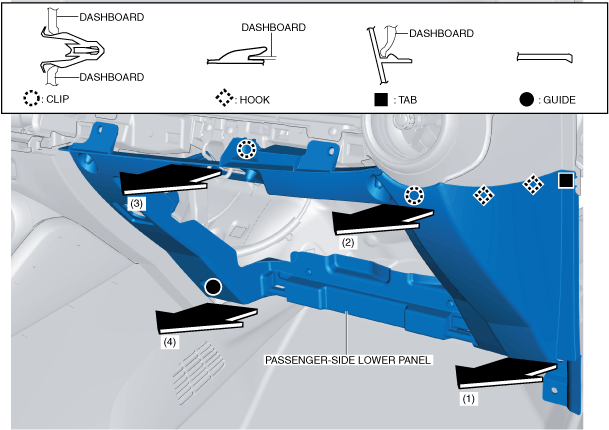

am2zzw00014181
|
6. Disconnect the passenger air bag deactivation (PAD) switch connector. (with passenger air bag deactivation (PAD) switch)
am2zzw00014182
|
Installation
1. Connect the passenger air bag deactivation (PAD) switch connector. (with passenger air bag deactivation (PAD) switch)
am2zzw00014182
|
2. Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and attach the clips, hooks, tab, and guide to the dashboard.

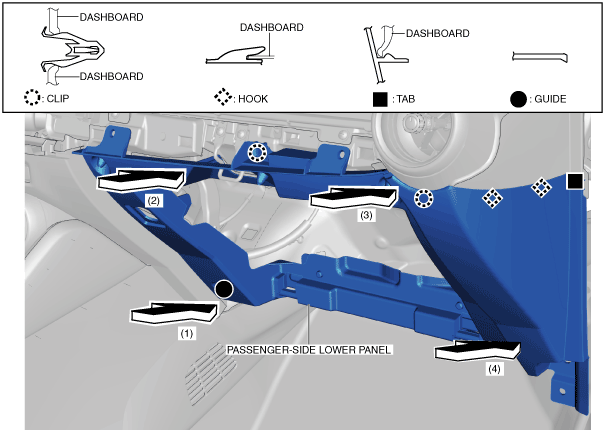

am2zzw00007650
|
3. Assemble the passenger-side lower panel to the dashboard and tighten the bolt and screws temporarily.

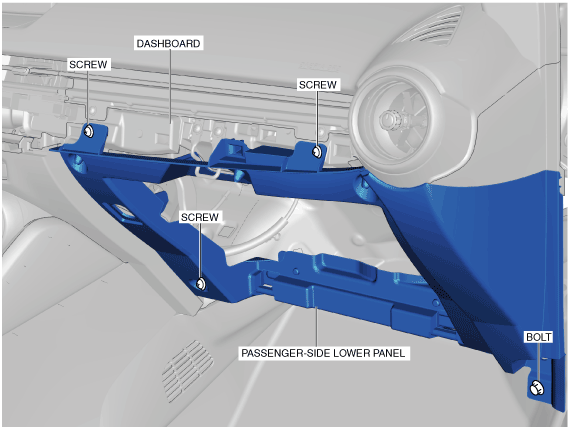

am2zzw00007614
|
4. Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
5. Measure the gaps between the glove compartment and the passenger-side lower panel and verify that the measured value is within the nominal value.

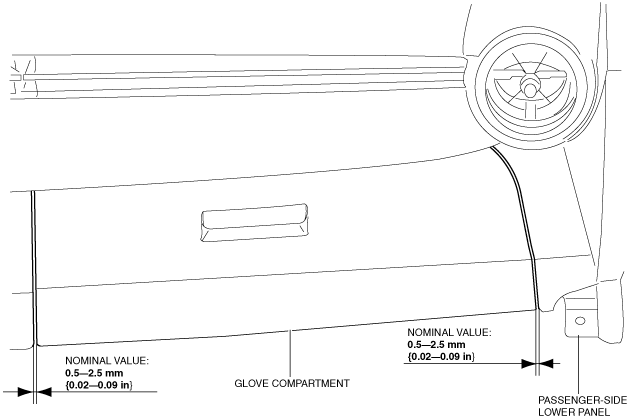

am2zzw00007643
|
6. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
7. Tighten the bolt and screws completely.

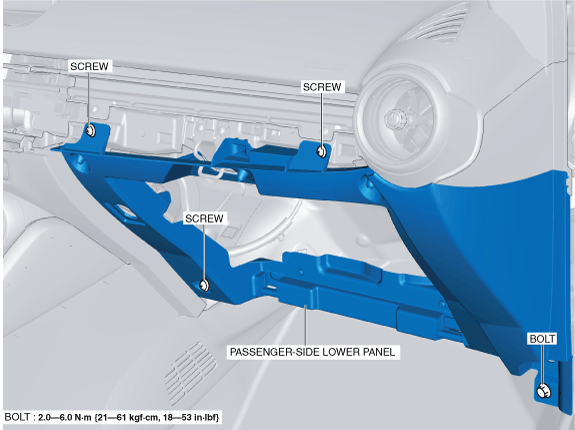

am2zzw00014183
|
8. Install the following parts:
