LICENSE PLATE LIGHT SHORT-CORD INSPECTION

id091800025400

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL.) (See REAR BUMPER INSTALLATION.)

(4)  License plate light short-cord (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION.)

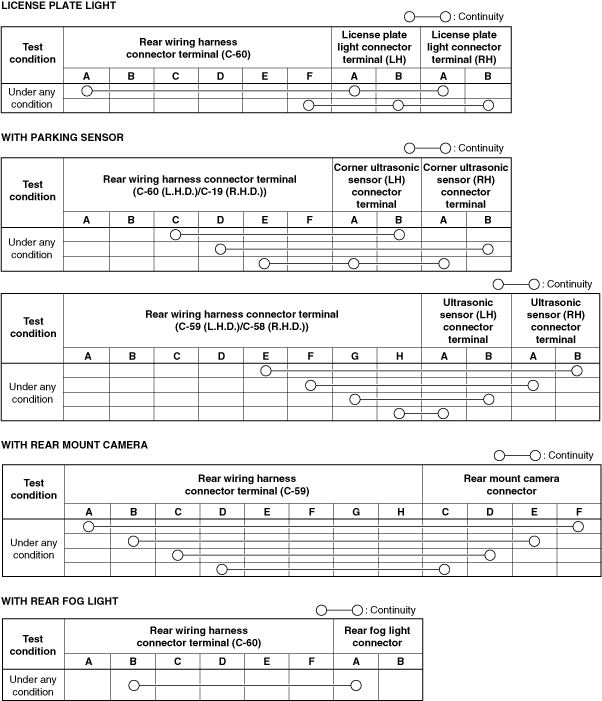

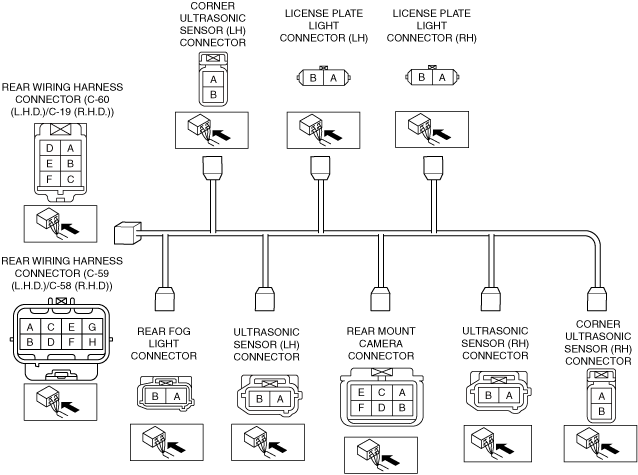

3.  Verify that the continuity between the license plate light short-cord terminals is as indicated in the table.

am2zzw00014454

am2zzw00014456

•  If not as indicated in the table, replace the license plate light short-cord. (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION.)
