HEADLIGHT LEVELING SWITCH INSPECTION

id091800803700

Note

•  The headlight leveling switch is integrated with the cluster switch.

•  If the headlight leveling switch is to be replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(5)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(6)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

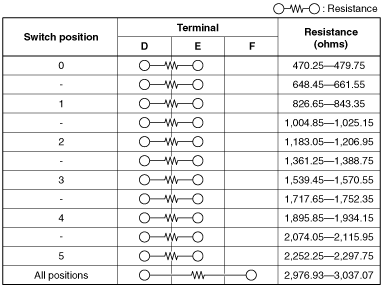

3.  Verify that the resistance between the cluster switch terminals is as indicated in the table.

am2zzw00010586

adejjw00009592

•  If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
