GPS ANTENNA FEEDER REMOVAL/INSTALLATION

id092000812100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(3)  Instrument cluster (with active driving display) (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(4)  GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

(5)  Audio panel No.2 (See AUDIO PANEL No.2 REMOVAL/INSTALLATION.)

(6)  Audio panel No.1 (See AUDIO PANEL No.1 REMOVAL/INSTALLATION.)

(7)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

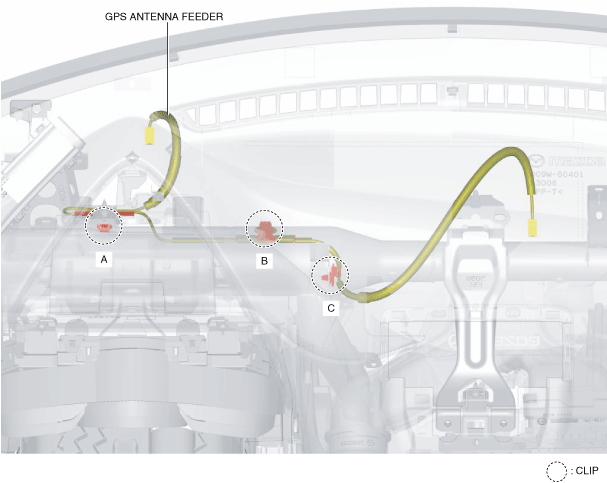

3.  Remove the clips A, B, and C in the position shown in the figure.

am2zzw00013138

4.  Remove the GPS antenna feeder.

5.  Install in the reverse order of removal.
