POWER SUPPLY SWITCHING

id092100205000


Outline

•  The power supply circuit can be switched by pressing the bush button start.

Function

•  Based on the push button start signals, the start stop unit switches the power supply circuit by turning on/off the relay according to the vehicle conditions such as the position of the selector lever/release of the brake pedal.

Automatic ignition switch off function

•  When 25 min or more have elapsed with the ignition switched to ACC, the ignition is automatically switched off.

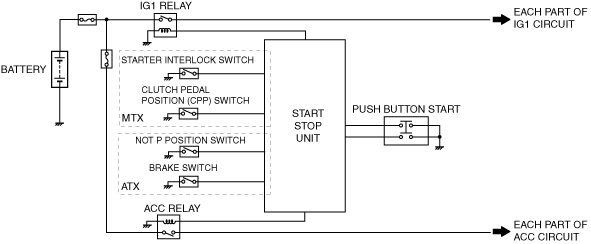

System Wiring Diagram

am2zzn00004843

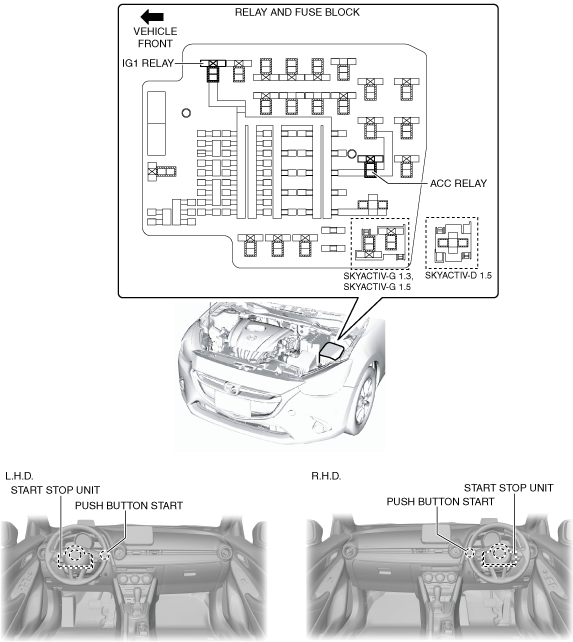

Structural View

am2zzn00004390

Operation


Switching the ignition

•  By pressing the push button start under the conditions shown in the figure, the ignition can be switched.
am2zzn00004844

*1  :To switch the ignition to ACC or OFF from ON (engine on), the vehicle speed must be 5 km/h {3 mph} or less.
*2  :To improve engine re-startability, it may take time to switch the ignition off. Refer to the [VARIABLE VALVE TIMING MECHANISM] for details. (See VARIABLE VALVE TIMING MECHANISM [SKYACTIV-G 1.3, SKYACTIV-G 1.5 (WITH 4-1 EXHAUST SYSTEM)].) (SeeVARIABLE VALVE TIMING MECHANISM [SKYACTIV-G 1.5 (WITH 4-2-1 EXHAUST SYSTEM)].)

Switching the power supply circuit

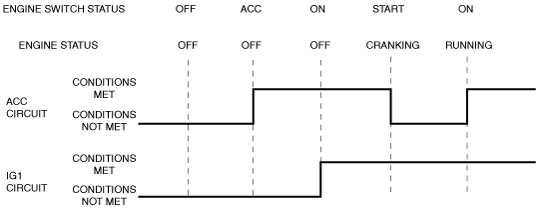

•  The start stop unit switches the power supply circuit as shown in the table according to the switching of the ignition.
am2zzn00002660


Automatic ignition switch off function

•  When all the following conditions are met for 25 min or more, the start stop unit switches the ignition off automatically.
―  ACC relay on and IG1 relay off (ignition switch ACC condition) are detected.
―  All door latch switches and liftgate latch switch off (all doors and liftgate are closed) is received
―  Push button start, light switch, wiper and washer switch, steering switch, and hazard warning switch are not operated.
―  Vehicle speed of 5 km/h or less is received
―  Brake switch off signal (brake pedal is not depressed) is detected
―  NOT P position switch off (selector lever is in P position) is detected


Fail-safe

•  Not applicable
