ACTIVE DRIVING DISPLAY

id092200037300

Purpose

• The active driving display displays the vehicle information in the display which is set within the forward visual range of the driver, allowing verification of the vehicle information with only the slightest change in the line of vision.

am2zzn00004377

Function

• The active driving display displays the following vehicle information.

― Current vehicle speed

― Cruise control set vehicle speed (with cruise control system)

― Adjustable speed limiter set vehicle speed (with Adjustable speed limiter system)

― Mazda radar cruise control (MRCC) system operation status or warning display (with MRCC)

― Smart brake support (SBS) warning display (with SBS)

― Distance recognition support system (DRSS) system operation status display (with DRSS)

― Smart city brake support (SCBS) warning display (with SCBS)

― Lane departure warning system (LDWS) operation status or warning display (with LDWS)

― Blind spot monitoring (BSM) system warning indication (with blind spot monitoring (BSM) system)

― Driver attention alert system warning display (with driver attention alert system)

― Travel direction (turn by turn (TBT)) display (with car navigation system)

• When the engine is started, the instrument cluster displays the following content on the active driving display based on the following CAN signals. For details on each display content, refer to each reference.

CAN signal sending module

Signal name

Display content

Display example

Reference

PCM

Vehicle speed signal

Current vehicle speed

(See SPEEDOMETER.)

PCM

Cruise control set vehicle speed display signal

Cruise control set vehicle speed

(See CRUISE CONTROL SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

(See CRUISE CONTROL SYSTEM [SKYACTIV-D 1.5].)

PCM

Adjustable speed limiter set vehicle speed display signal

Adjustable speed limiter set vehicle speed

(See ADJUSTABLE SPEED LIMITER.)

Radar unit (MRCC system)

Operation display request signal

Distance between vehicles and MRCC set vehicle speed

(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM.)

Warning display request signal

Shift up/down required (MTX)

MRCC automatically canceled due to low vehicle speed

Deceleration exceeding system limits required

Radar unit (SBS)

Warning display request signal

Deceleration exceeding system limits required

(See SMART BRAKE SUPPORT (SBS).)

Radar unit (DRSS system)

Operation display request signal

Distance from vehicle ahead

(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)

Forward sensing camera (FSC) (SCBS)

Warning display request signal

Warning screen

(See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).)

(See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)

Forward sensing camera (FSC) (LDWS)

Operation display request signal

Vehicle lane display

(See LANE DEPARTURE WARNING SYSTEM (LDWS).)

Warning display request signal

Warning screen

Blind spot monitoring (BSM) control module

Warning display request signal

Warning screen

(See BLIND SPOT MONITORING (BSM) SYSTEM.)

Parking assist unit (Driver attention alert system)

Warning display request signal

Warning screen

(See DRIVER ATTENTION ALERT SYSTEM.)

Connectivity master unit (CMU)

Turn-by-turn (TBT) display request signal

Travel direction display

(See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)

Instrument cluster

Warning display request signal

Warning screen

(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].)

(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)

CAN signal sending module	Signal name	Display content	Reference
PCM	Vehicle speed signal	Current vehicle speed	(See SPEEDOMETER.)
PCM	Cruise control set vehicle speed display signal	Cruise control set vehicle speed	(See CRUISE CONTROL SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See CRUISE CONTROL SYSTEM [SKYACTIV-D 1.5].)
PCM	Adjustable speed limiter set vehicle speed display signal	Adjustable speed limiter set vehicle speed	(See ADJUSTABLE SPEED LIMITER.)
Radar unit (MRCC system)	Operation display request signal	Distance between vehicles and MRCC set vehicle speed	(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM.)
Warning display request signal	Shift up/down required (MTX)
MRCC automatically canceled due to low vehicle speed
Deceleration exceeding system limits required
Radar unit (SBS)	Warning display request signal	Deceleration exceeding system limits required	(See SMART BRAKE SUPPORT (SBS).)
Radar unit (DRSS system)	Operation display request signal	Distance from vehicle ahead	(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
Forward sensing camera (FSC) (SCBS)	Warning display request signal	Warning screen	(See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).) (See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)
Forward sensing camera (FSC) (LDWS)	Operation display request signal	Vehicle lane display	(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
Warning display request signal	Warning screen
Blind spot monitoring (BSM) control module	Warning display request signal	Warning screen	(See BLIND SPOT MONITORING (BSM) SYSTEM.)
Parking assist unit (Driver attention alert system)	Warning display request signal	Warning screen	(See DRIVER ATTENTION ALERT SYSTEM.)
Connectivity master unit (CMU)	Turn-by-turn (TBT) display request signal	Travel direction display	(See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)
Instrument cluster	Warning display request signal	Warning screen	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].) (See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)

Setting function

• The following items for the active driving display can be set on the [Settings] screen of the center display.

Item

Setting contents

Height

The display open/close angle can be adjusted.

Brightness Control

The display brightness can be switched between automatic/manual.

Calibration

The automatic dimness adjustment level can be switched.

(Can only be changed when Auto is selected in the brightness control)

Brightness

The brightness of the display can be adjusted.

(Can only be changed when Manual is selected in the brightness control)

Navigation

The turn-by-turn (TBT) display can be switched on/off.

Active Driving Display

The active driving display can be switched between ON/OFF.

Reset

The active driving display settings can be reset to the initial settings.

Item	Setting contents
Height	The display open/close angle can be adjusted.
Brightness Control	The display brightness can be switched between automatic/manual.
Calibration	The automatic dimness adjustment level can be switched. (Can only be changed when Auto is selected in the brightness control)
Brightness	The brightness of the display can be adjusted. (Can only be changed when Manual is selected in the brightness control)
Navigation	The turn-by-turn (TBT) display can be switched on/off.
Active Driving Display	The active driving display can be switched between ON/OFF.
Reset	The active driving display settings can be reset to the initial settings.

Demonstration function

Note

• The demonstration function force-displays the active driving display without the engine being started, such as on an indoor exhibition vehicle, so that customers can verify the display status.

• Because the demonstration function launches the active driving display with the ignition switched ON (engine off), take measures to prevent battery discharge such as connecting an external power supply to the vehicle.

• The demonstration function launches the active driving display with the ignition switched ON (engine off) to display the vehicle information in the display.

Demonstration function on setting procedure

1. Verify that the all doors are closed.

2. After switching the ignition ON (engine off), switch the light switch within 5 s as follows.

• OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF

3. Switch the light switch (dimmer switch) within 5 s after Step 2 as follows.

• OFF→Headlight HI ON→OFF→Headlight HI ON→OFF→Headlight HI ON→OFF

4. Switch the light switch as follows to turn the demonstration function on.

• OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)

Note

• After Step 4, the combiner closes when the demonstration function turns on.

5. Switch the ignition off.

Note

• If the ignition is switched off with the demonstration function turned on, the demonstration function will operate the next time the ignition is switched ON (engine off).

• If the following is performed with the demonstration function on, the demonstration function turns off.

― The battery power is interrupted or the ROOM fuse is removed.

― The vehicle is driven at 20 km/h {12 mph} or more.

Demonstration function off setting procedure

1. After switching the ignition ON (engine off), switch the light switch within 5 s as follows.

• OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF→TNS (parking lights)→OFF

2. Switch the light switch (dimmer switch) within 5 s after Step 1 as follows.

• OFF→Headlight HI ON→OFF→Headlight HI ON→OFF→Headlight HI ON→OFF

3. Switch the light switch as follows to turn the demonstration function off.

Note

• After Step 3, the combiner displays “Demonstration Mode OFF” when the demonstration function turns off.

4. Switch the ignition off.

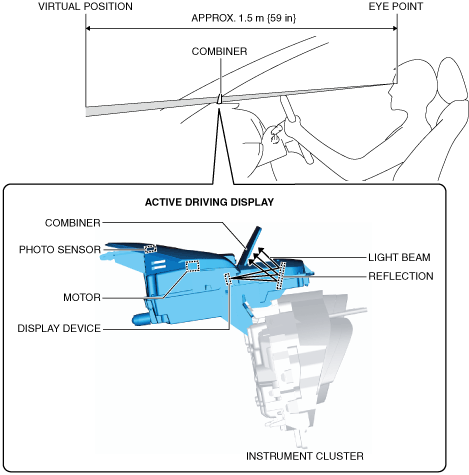

Construction

• The active driving display is assembled to the instrument cluster.

• The active driving display consists of a display device which produces the display content and emits the content over a light beam, a reflector which reflects the light beam emitted from the display device, a combiner which reflects the light beam from the reflector and displays the screen, a motor which opens/closes the combiner, and a photo sensor which detects the brightness surrounding the display device.

• The combiner is a semi-transparent acrylic board processed for reflecting the light beam from the display device.

• The combiner opens at the top of the meter hood and displays vehicle information in the forward visual range of the driver. As a result, the time has been shortened in which the driver's line of vision changes from the view at the front of the vehicle to the view of the vehicle information reflected in the combiner.

• By using a concave shaped display, the image reflected in the display is positioned virtually approx. 1.5 m {59 in} forward of the eye point. As a result, the eye point adjustment time has been reduced in which the driver's line of vision changes from the view at the front of the vehicle to the view of the vehicle information reflected in the display.

am2zzn00004378

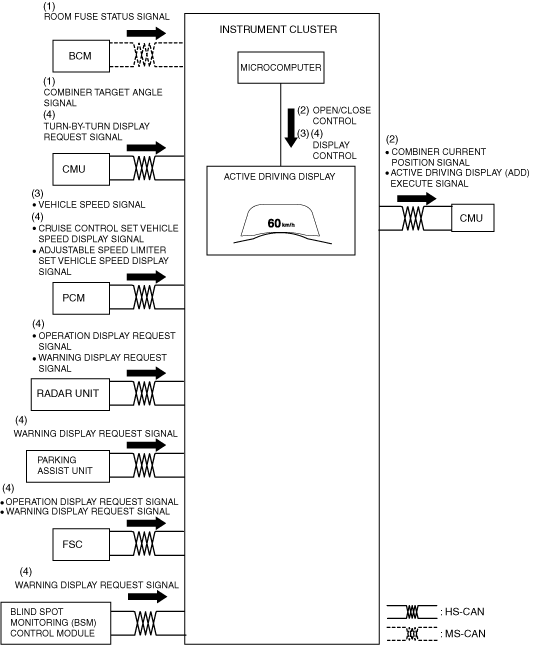

Operation

1. When the ignition is switched ON (engine on), the instrument cluster opens the combiner based on the following CAN signals. (1)

― ROOM fuse status signal from BCM

― Combiner target angle signal from connectivity master unit (CMU)

2. When the combiner opens, the instrument cluster displays the opening screen (vehicle name) for approx. 2 s. In addition, it sends an active driving display execute signal and combiner current position signal (2) to the connectivity master unit (CMU).

Note

• The connectivity master unit (CMU) records the current position of the combiner based on the combiner current position signal from the instrument cluster. When the ignition is switched from off to ON (engine on), it sends the target angle signal based on the recorded current position.

• The combiner current position recorded by the connectivity master unit (CMU) is not cleared even if the battery power is disconnected.

• If the connectivity master unit (CMU) has not recorded the combiner current position, it sends the target angle signal of the initial value.

3. After the opening screen is turned off, the instrument cluster displays the current vehicle speed based on the vehicle speed signal (3) from the PCM, and displays the warning or other screens based on request signals (4) from related modules.

am2zzn00004659

Fail-safe

• The instrument cluster turns off the active driving display images under the following conditions and stops the display at the current position.

― Error signal from connectivity master unit (CMU) is received, and CMU malfunction is determined

― Communication with connectivity master unit (CMU) is interrupted

― Motor malfunction for combiner operation is detected
