DETERMINING SHORT BETWEEN CIRCUITS LOCATION (MS-CAN) [SKYACTIV-G 1.3, SKYACTIV-G 1.5 (R.H.D.)]

id100220001100

Caution

•  Perform the following malfunction diagnosis only when it is diagnosed with a short between circuits by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 1.3, SKYACTIV-G 1.5 (R.H.D.)].)

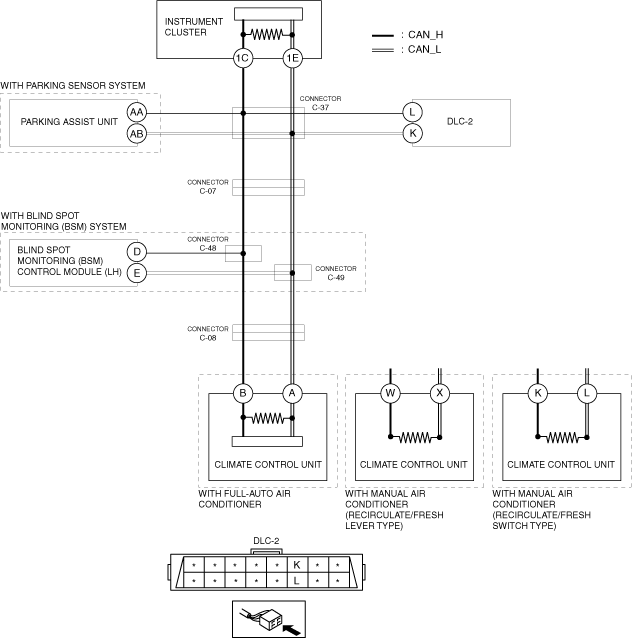

System Wiring Diagram

am2zzw00014582

Determination Procedure

Caution

•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

•  When inspecting the DLC-2, touch it with a paper clip or similar thin pin without directly inserting a tester into the terminals.

Step	Inspection		Action
1	INSPECT BETWEEN INSTRUMENT CLUSTER AND CONNECTOR C-37 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Disconnect the connector C-37. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off). •  Measure the voltage at instrument cluster terminals 1C and 1E. •  Is the voltage at instrument cluster terminals 1C and 1E the same?	Yes	Go to the next step.
		No	Go to Step 3.
2	INSPECT INSTRUMENT CLUSTER FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Disconnect the instrument cluster connector. •  Inspect for continuity between instrument cluster terminals 1C and 1E (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the instrument cluster and connector C-37 because the wiring harness is shorted between circuits.
		No	Replace the instrument cluster because there is a short between circuits in the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
3	INSPECT BETWEEN CONNECTOR C-37 AND PARKING ASSIST UNIT FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Inspect for continuity between parking assist unit terminals AA and AB. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 5.
4	INSPECT PARKING ASSIST UNIT FOR SHORT BETWEEN CIRCUITS •  Disconnect the parking assist unit connector. •  Inspect for continuity between parking assist unit terminals AA and AB. (wiring harness side) •  Is there continuity?	Yes	Repair or replace the wiring harness between the parking assist unit and connector C-37 because the wiring harness is shorted between circuits.
		No	Replace the parking assist unit because there is a short between circuits inside the parking assist unit. (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.)
5	INSPECT BETWEEN CONNECTOR C-37 AND DLC-2 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between DLC-2 terminals L and K. •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-37 and DLC-2 because the wiring harness is shorted between circuits.
		No	Go to the next step.
6	INSPECT BETWEEN CONNECTOR C-07 AND CONNECTOR C-37 FOR SHORT BETWEEN CIRCUITS •  Disconnect the connector C-07. •  Connect the connector C-37. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals L and K. •  Is the voltage at DLC-2 terminals L and K the same?	Yes	Repair or replace the wiring harness between connector C-07 and connector C-37 because the wiring harness is shorted between circuits.
		No	Go to the next step.
7	INSPECT BETWEEN CONNECTORS C-48 AND C-49 AND CONNECTOR C-07 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Disconnect the connectors C-48 and C-49. •  Connect the connector C-07. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals L and K. •  Is the voltage at DLC-2 terminals L and K the same?	Yes	Repair or replace the wiring harness between connectors C-48 and C-49 and connector C-07 because the wiring harness is shorted between circuits.
		No	Go to the next step.
8	INSPECT BETWEEN BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) AND CONNECTORS C-48 AND C-49 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Inspect the continuity between blind spot monitoring (BSM) control module (LH) terminals D and E. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 10.
9	INSPECT BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) FOR SHORT BETWEEN CIRCUITS •  Disconnect the blind spot monitoring (BSM) control module (LH) connector. •  Inspect for continuity between blind spot monitoring (BSM) control module (LH) terminals D and E (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the blind spot monitoring (BSM) control module (LH) and connectors C-48 and C-49 because the wiring harness is shorted between circuits.
		No	Replace the blind spot monitoring (BSM) control module (LH) because there is a short between circuits in the blind spot monitoring (BSM) control module (LH). (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION.)
10	INSPECT BETWEEN CONNECTOR C-08 AND CONNECTORS C-48 AND C-49 FOR SHORT BETWEEN CIRCUITS •  Disconnect the connector C-08. •  Connect the connectors C-48 and C-49. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals L and K. •  Is the voltage at DLC-2 terminals L and K the same?	Yes	Repair or replace the wiring harness between connector C-08 and connectors C-48 and C-49 because the wiring harness is shorted between circuits.
		No	Go to the next step.
11	INSPECT CLIMATE CONTROL UNIT FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) •  Disconnect the climate control unit connector. •  Inspect for continuity between climate control unit terminals B and A (wiring harness side). (with full-auto air conditioner) •  Inspect for continuity between climate control unit terminals W and X. (wiring harness side). (with manual air conditioner (RECIRCULATE/FRESH lever type)) •  Inspect for continuity between climate control unit terminals K and L. (wiring harness side). (with manual air conditioner (RECIRCULATE/FRESH switch type)) •  Is there continuity?	Yes	Repair or replace the wiring harness between the climate control unit and connector C-08 because the wiring harness is shorted between circuits.
		No	Replace the climate control unit because there is a short between circuits inside the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
